Description
General part information

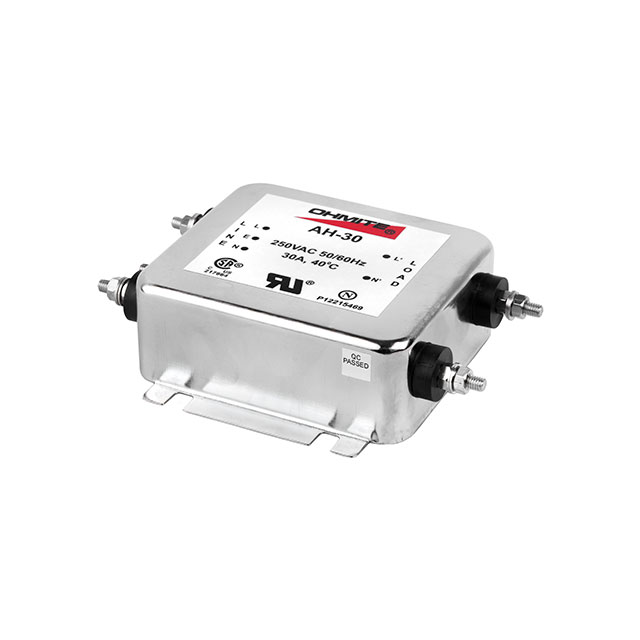

AH-30
Single Phase EMC/EMI Line Filter 30 A 110V, 250V 50/60Hz Two Stage Threaded Post (M5)
Technical Specifications
Parameters and characteristics for this part
| Specification | AH-30 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cCSAus, CE, UR |
| Configuration | Two Stage |
| Current | 30 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Size | 5 mm |
| Termination Style | Threaded Post, Threaded Post (M5) |
| Thread Size | M5 |
| Voltage - Rated AC | 250V, 110V |
