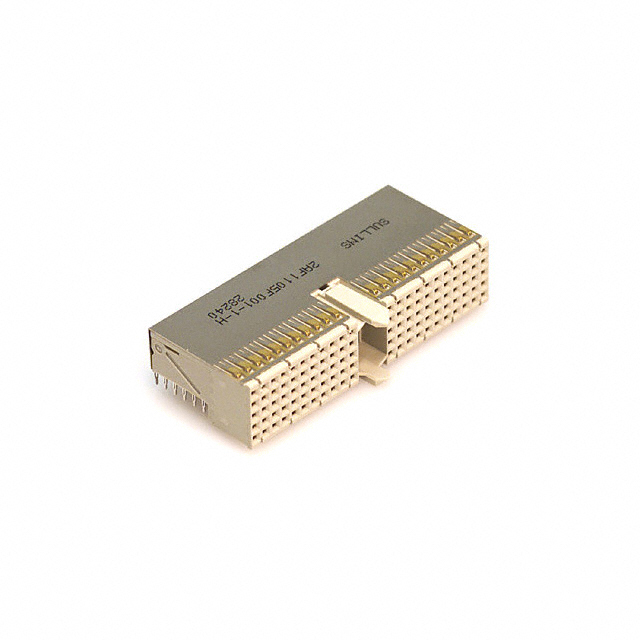

2AF1105F001-1-H

Obsolete

Sullins Connector Solutions

CONN RECEPT 110POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN RECEPT 110POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

CONN RECEPT 110POS 2MM PRESS-FIT

Part	Features	Number of Positions	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Connector Usage	Number of Rows	Connector Style	Termination	Mounting Type	Current Rating (Amps)	Number of Positions Loaded	Pitch [x]	Pitch [x]
Sullins Connector Solutions 2AF1105F001-1-H	Upper Shield	110 positions	Gold	125 °C	-65 ░C	Receptacle, Female Sockets	0.76 Ám	30 Áin	CompactPCI	5	A 22	Press-Fit	Through Hole, Right Angle	1 A	All	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
