ERA.00.250.CLL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERA.00.250.CLL | ERA.00.250 Series |
|---|---|---|
| Body Finish | Chrome | Chrome, Nickel, Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Bronze | Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder Cup | Solder Cup |
| Dielectric Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Silver | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Mating Cycles | 5000 | 5000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 260 ░C | 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 700 VDC | 700 VDC |
ERA.00.250 Series
CONN NIMCAMAC RCPT STR 50 OHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Ingress Protection | Housing Color | Shield Termination | Impedance | Connector Style | Includes | Mounting Feature | Body Material | Body Finish | Fastening Type | Contact Termination | Mating Cycles | Center Contact Material | Center Contact Plating | Dielectric Material | Connector Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

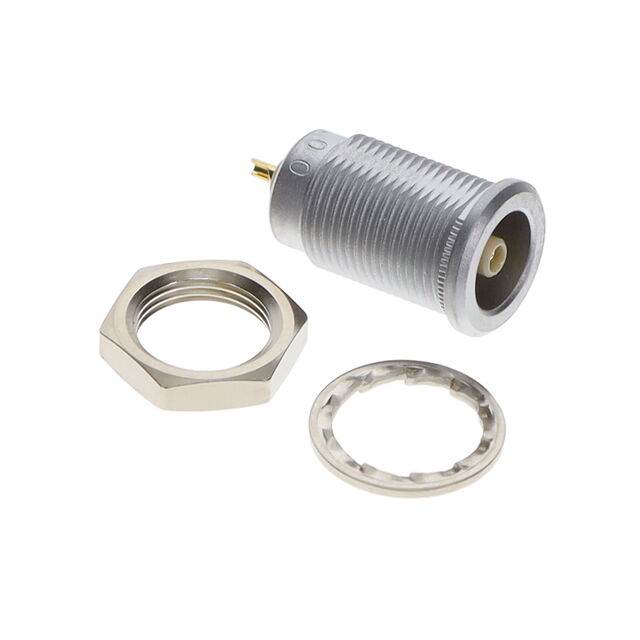

LEMO ERA.00.250.CLL | -55 °C | 260 ░C | 1 | IP50 | Silver | Solder | 50 Ohms | NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead - Rear Side Nut | Brass | Chrome | Push-Pull | Solder Cup | 5000 | Bronze | Gold | Polyetheretherketone (PEEK) | Female Socket, Receptacle | 700 VDC |
LEMO ERA.00.250.NTL | -55 °C | 260 ░C | 1 | IP50 | Silver | Solder | 50 Ohms | NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead - Rear Side Nut | Brass | Nickel | Push-Pull | Solder Cup | 5000 | Bronze | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | 700 VDC |
LEMO ERA.00.250.CTL | -55 °C | 260 ░C | 1 | IP50 | Silver | Solder | 50 Ohms | NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead - Rear Side Nut | Brass | Chrome | Push-Pull | Solder Cup | 5000 | Bronze | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | 700 VDC |
LEMO ERA.00.250.NLL | -55 °C | 260 ░C | IP50 | Silver | Solder | 50 Ohms | NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead - Rear Side Nut | Brass | Nickel | Push-Pull | Solder Cup | 5000 | Bronze | Gold | Polyetheretherketone (PEEK) | Female Socket, Receptacle | 700 VDC | |
LEMO ERA.00.250.DTL | -55 °C | 260 ░C | 1 | IP50 | Gold | Solder | 50 Ohms | NIM-CAMAC CD/N 549 | 1 Connector, 1 Lockwasher, 1 Nut | Bulkhead - Rear Side Nut | Brass | Gold | Push-Pull | Solder Cup | 5000 | Bronze | Gold | Polytetrafluoroethylene (PTFE) | Female Socket, Receptacle | 700 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.06 | |
| 10 | $ 13.90 | |||
| 25 | $ 12.57 | |||
| 50 | $ 11.68 | |||
| 100 | $ 10.86 | |||
| 250 | $ 9.91 | |||
| 500 | $ 9.26 | |||
| 1000 | $ 8.68 | |||
Description
General part information
ERA.00.250 Series
NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
