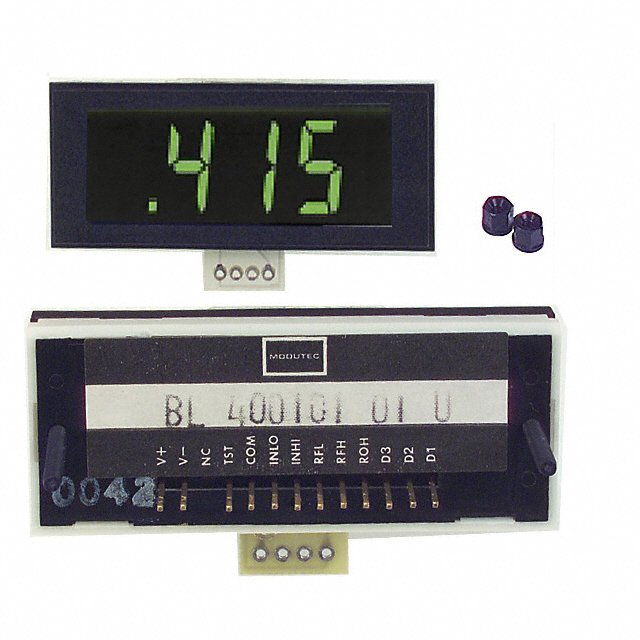

BL-400101-01-U

Unknown

Jewell Instruments LLC

VOLTMETER 200MVDC LCD PANEL MT

Search across all available documentation for this part.

Unknown

Jewell Instruments LLC

VOLTMETER 200MVDC LCD PANEL MT

Technical Specifications

Parameters and characteristics for this part

Specification	BL-400101-01-U

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD - Green Characters, Backlight
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Mounting Type	Panel Mount - Window
Number of Characters Per Row	3.5
Panel Cutout Dimensions [x]	58.24 mm
Panel Cutout Dimensions [y]	22.23 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	9 V

VOLTMETER 200MVDC LCD PANEL MT

Part	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Voltage - Supply	Measuring Type	Number of Characters Per Row	Display Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Range [Min]	Measuring Range [Max]	Type	Mounting Type
Jewell Instruments LLC BL-400101-01-U	0.5 in	12.7 mm	PC Pin	9 V	Voltage	3.5	LCD - Green Characters, Backlight	22.23 mm	58.24 mm	-200 mV	0.2 VDC	Voltmeter	Panel Mount - Window

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.65

General part information

Voltmeter LCD - Green Characters, Backlight Display Panel Mount - Window
