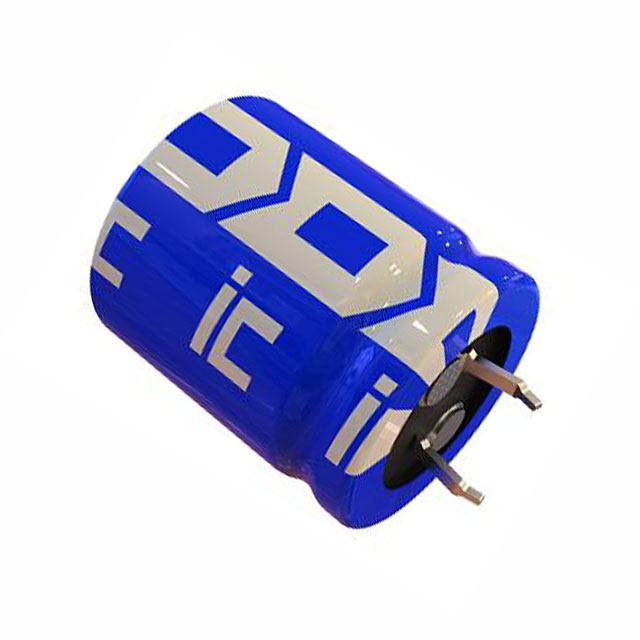

Specification	337LMU500M2EH

Applications	General Purpose
Capacitance	330 µF
ESR (Equivalent Series Resistance)	753.575 mOhm
Height - Seated (Max)	2.047 in
Lead Spacing	0.394 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.8081 A, 1.23 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	500 V
