Description
General part information

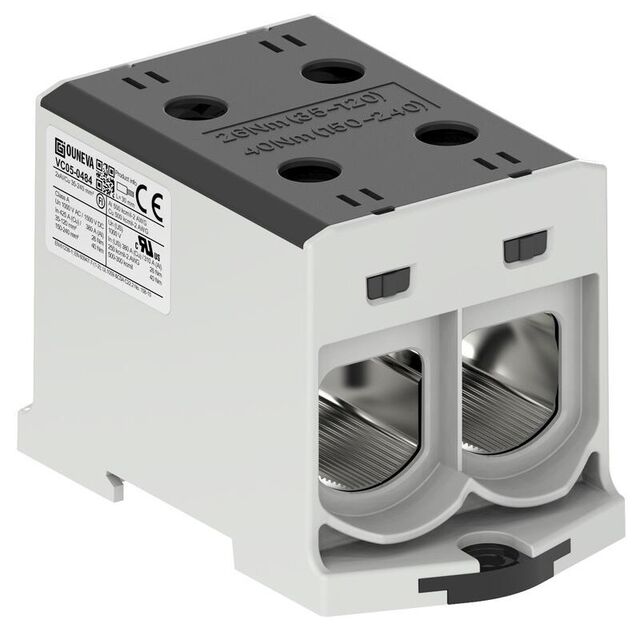

VC05-0484
2 Pole Power Distribution Block 850 A 1500 V
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0484 |
|---|---|
| Current Rating | 850 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Cross-sectional Area | 500 MCM |
| Line Side Wire/Stud Designation | #2CU/AL |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size (Area) | 500 MCM |
| Load Side Wire/Stud Size (Designation) | #2CU/AL |
| Number of Poles | 2 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
