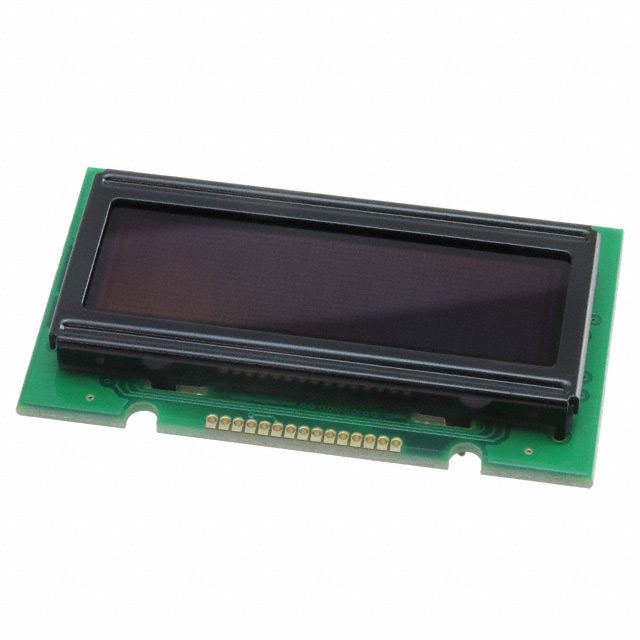

O012N002ABPP5N0000
ActiveVishay Dale
OLED MODULE 24DIG 12 X 2 PASSIVE
O012N002ABPP5N0000
ActiveVishay Dale
OLED MODULE 24DIG 12 X 2 PASSIVE
Description
General part information
O012N002ABPP5N0000
Character Display Module Passive 5 x 8 Dots OLED SPI 55.70mm x 32.00mm x 11.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | O012N002ABPP5N0000 |
|---|---|
| Character Height | 5.5 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.65 mm |
| Character Width (Dots) | 5 Dots |
| Display Columns | 12 |
| Display Mode | Passive |
| Display Rows | 2 |
| Display Type | OLED |
| Dot Size Height | 0.6 mm |
| Dot Size Width | 0.45 mm |
| Interface | SPI |
| Number of Characters | 24 characters |
| Outline Height | 11 mm |
| Outline Length | 55.7 mm |
| Outline Width | 32 mm |
| Text Color | Blue |
| Viewing Area Length | 46 mm |
| Viewing Area Width | 14.5 mm |
| Voltage - Supply | 5 VDC |
