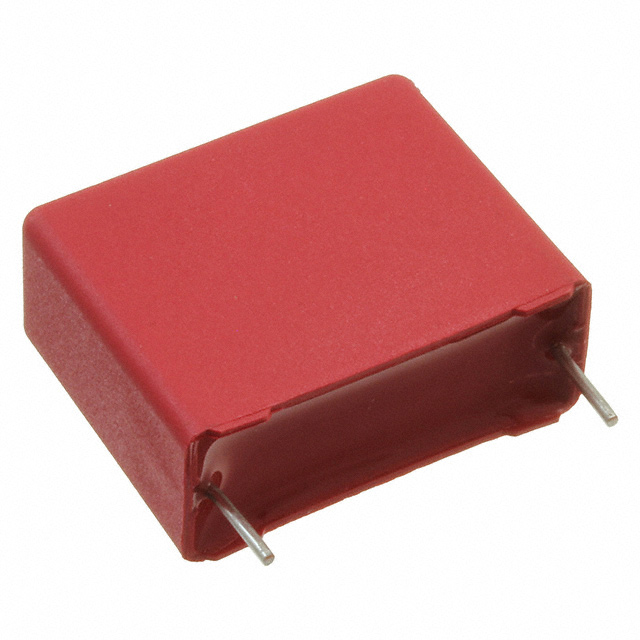

MKPCJ042205I00KSC9

Obsolete

WIMA

CAP FILM 2.2UF 10% 630VDC RAD

Search across all available documentation for this part.

Obsolete

WIMA

CAP FILM 2.2UF 10% 630VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	MKPCJ042205I00KSC9

Applications	Switching, High Frequency
Capacitance	2.2 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	21 mm
Height - Seated (Max) [Max] [z]	0.827 "
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	26.5 mm
Size / Dimension [x]	1.043 in
Size / Dimension [y]	0.433 in
Size / Dimension [y]	11 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 V

CAP FILM 2.2UF 10% 630VDC RAD

Part	Capacitance	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Applications	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance
WIMA MKPCJ042205I00KSC9	2.2 µF	Radial	22.5 mm	0.886 in	200 V	-55 °C	110 °C	Metallized, Polypropylene (PP)	26.5 mm	0.433 in	11 mm	1.043 in	Through Hole	High Frequency, Switching	PC Pins	21 mm	0.827 "	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µF Film Capacitor 200V 630V Polypropylene (PP), Metallized Radial

Technical documentation and resources

No documents available
