01002-8824

Active

Sensata-BEI Sensors

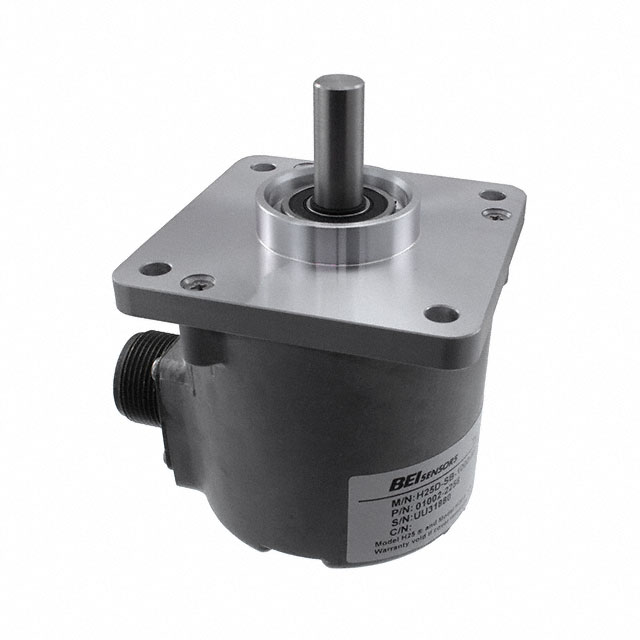

OPTICAL ENCODER 300PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

OPTICAL ENCODER 300PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 532.00

General part information

OPTICAL ENCODER 300PPR

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	01002-8824	01002 Series

	-	-
Actuator Type	Shaft	Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Optical	Optical, Incremental
Mounting Type	Servo Mount	Chassis Mount, Servo Mount
Orientation	User Selectable	User Selectable
Output Type	Quadrature (Incremental)	Quadrature with Index (Incremental), Quadrature (Incremental), Quadrature Line Driver with Index (Incremental), Quadrature (Analog)
Pulses per Revolution	300	1 - 5000
Rotational Life (Cycles Min)	200M	200M
Rotational Life (Cycles Min)	-	10B
Termination Style	Connector	Connector, Cable
Voltage - Supply [Max]	28 V	15 - 28 V
Voltage - Supply [Min]	5 V	5 - 15 V

ROTARY ENCODER OPTICAL 2540PPR

...

Part	Encoder Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Actuator Type	Output Type	Mounting Type	Pulses per Revolution	Rotational Life (Cycles Min)	Orientation	Rotational Life (Cycles Min) [Min]
Sensata-BEI Sensors 01002-7475	Optical	5 V	15 V	Connector	Shaft	Quadrature with Index (Incremental)	Chassis Mount	2540	200M	User Selectable
Sensata-BEI Sensors 01002-6732	Optical	5 V	28 V	Connector	Shaft	Quadrature with Index (Incremental)	Chassis Mount	2500	200M	User Selectable
Sensata-BEI Sensors 01002-6914	Optical	5 V	28 V	Connector	Shaft	Quadrature with Index (Incremental)	Servo Mount	1000	200M	User Selectable
Sensata-BEI Sensors 01002-10470	Optical	5 V	28 V	Connector	Shaft	Quadrature with Index (Incremental)	Chassis Mount	2500	200M	User Selectable
Sensata-BEI Sensors 01002-9220	Optical	5 V	28 V	Connector	Shaft	Quadrature (Incremental)	Chassis Mount	1000		User Selectable	10B
Sensata-BEI Sensors 01002-9385	Optical	5 V	28 V	Connector	Shaft	Quadrature with Index (Incremental)	Servo Mount	2000 pulses per revolution	200M
Sensata-BEI Sensors 01002-9418	Optical	5 V	28 V	Connector	Shaft	Quadrature (Incremental)	Chassis Mount	2048	200M	User Selectable
Sensata-BEI Sensors 01002-9293	Optical	5 V	28 V	Connector	Shaft	Quadrature with Index (Incremental)	Chassis Mount	5000	200M	User Selectable
Sensata-BEI Sensors 01002-8940	Optical	5 V	28 V	Connector	Shaft	Quadrature (Incremental)	Chassis Mount		200M	User Selectable
Sensata-BEI Sensors 01002-5119	Optical	5 V	28 V	Connector	Shaft	Quadrature (Incremental)	Chassis Mount	500	200M	User Selectable
