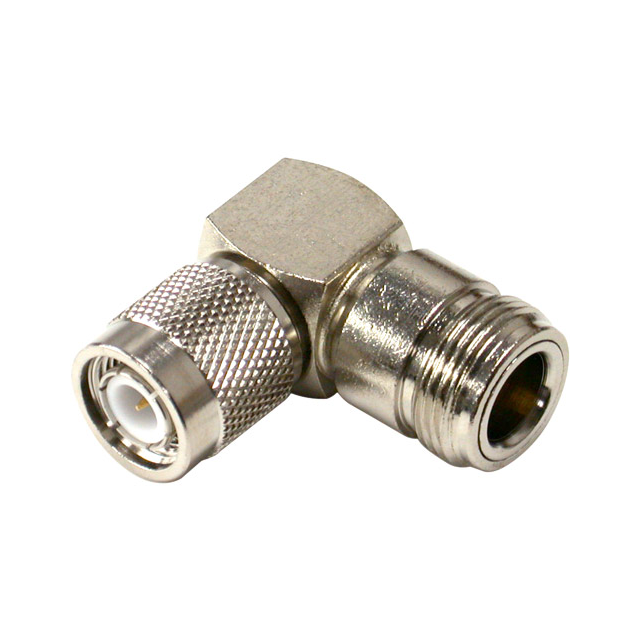

RFT-1234-11

Active

RF Industries

TNC MALE-N FEMALE; R/A

Search across all available documentation for this part.

Active

RF Industries

TNC MALE-N FEMALE; R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RFT-1234-11

Adapter Series	N to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Between Series
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Body Material	Center Contact Plating	Dielectric Material	Body Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Frequency - Max [Max]	Conversion Type	Center Contact Material	Convert To (Adapter End)	Adapter Series	Impedance	Style
RF Industries RFT-1234-11	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel	Free Hanging (In-Line) Right Angle	-65 ░C	85 °C	Plug to Jack	7 GHz	Between Series	Brass	Female Socket N Jack	N to TNC	50 Ohms	Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To N Jack, Female Socket 50 Ohms
