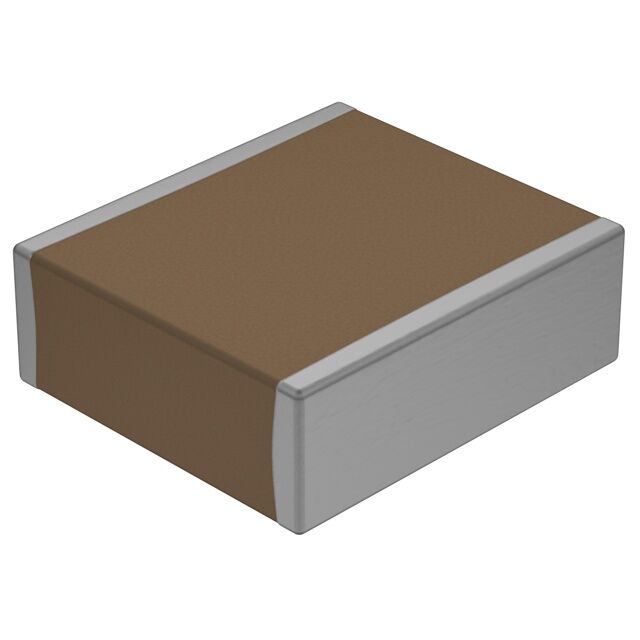

Specification	VJ2225Y473KXXAT

Applications	General Purpose
Capacitance	47 nF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	2225 (5763 Metric)
Size / Dimension Length	0.22 in
Size / Dimension Width	0.25 in
Temperature Coefficient	X7R
Thickness (Max)	0.086 in
Tolerance	10 %
Voltage - Rated	25 VAC

VJ2225 Series

...

Part	Package / Case	Thickness (Max)	Voltage - Rated	Mounting Type	Applications	Tolerance	Capacitance	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Temperature Coefficient	Features
Vishay Dale VJ2225A561KBEAT4X	2225 (5763 Metric)	0.086 in	500 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	10 %	560 pF	125 °C	-55 °C	0.25 in	0.226 in	C0G NP0	Open Mode Soft Termination
Vishay Dale VJ1808Y152JBRAT4X	1808 (4520 Metric)	0.086 in	1500 VAC	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	5 %	1500 pF	125 °C	-55 °C	0.08 in	0.186 in	X7R	High Voltage Open Mode Soft Termination
Vishay Dale VJ1812A561JBGAT4X	1812 (4532 Metric)	0.086 in	1000 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	5 %	560 pF	125 °C	-55 °C	0.126 in	0.183 in	C0G NP0	High Voltage Open Mode Soft Termination
Vishay Dale VJ2225A821KBGAT4X	2225 (5763 Metric)	0.086 in	1000 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	10 %	820 pF	125 °C	-55 °C	0.25 in	0.226 in	C0G NP0	High Voltage Open Mode Soft Termination
Vishay Dale VJ2220A392KBCAT4X	2220 (5750 Metric)	0.086 in	200 VDC	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	10 %	3900 pF	125 °C	-55 °C	0.2 in	0.226 in	C0G NP0	Open Mode Soft Termination
Vishay Dale VJ2220A391JBAAT4X	2220 (5750 Metric)	0.086 in	50 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	5 %	390 pF	125 °C	-55 °C	0.2 in	0.226 in	C0G NP0	Open Mode Soft Termination
Vishay Dale VJ1206Y184KBAAT4X	1206 (3216 Metric)	0.067 in	50 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	10 %	0.18 µF	125 °C	-55 °C	0.063 in	0.132 in	X7R	Open Mode Soft Termination
Vishay Dale VJ1808A821KBLAT4X	1808 (4520 Metric)	0.086 in	630 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	10 %	820 pF	125 °C	-55 °C	0.08 in	0.186 in	C0G NP0	Open Mode Soft Termination
Vishay Dale VJ1812Y122KBBAT4X	1812 (4532 Metric)	0.086 in	100 VAC/DC	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	10 %	1200 pF	125 °C	-55 °C	0.126 in	0.183 in	X7R	Open Mode Soft Termination
Vishay Dale VJ1808A121JBLAT4X	1808 (4520 Metric)	0.086 in	630 V	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	5 %	120 pF	125 °C	-55 °C	0.08 in	0.186 in	C0G NP0	Open Mode Soft Termination
