TCG057VGLAAANN-GN20

Obsolete

Kyocera International, Inc.

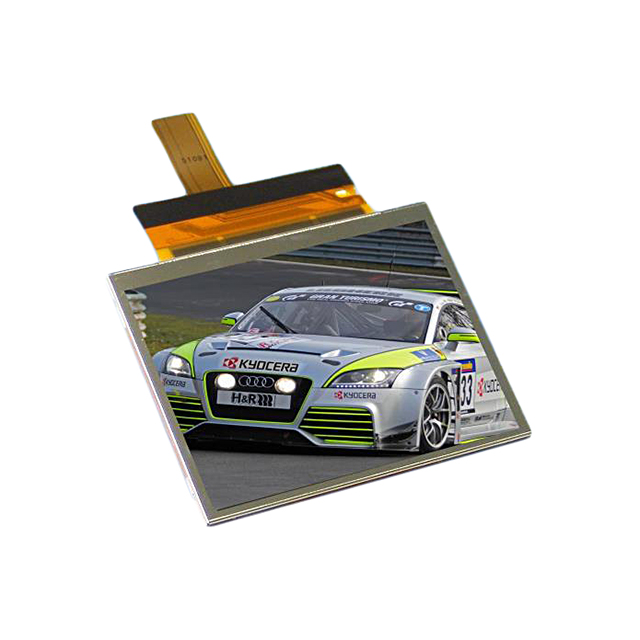

LCD TFT DISPLAY 5.7" TRANS

Search across all available documentation for this part.

Obsolete

Kyocera International, Inc.

LCD TFT DISPLAY 5.7" TRANS

Technical Specifications

Parameters and characteristics for this part

Part	Display Mode	Interface	Display Type	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [y]	Dot Pixels [x]	Backlight	Graphics Color	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [y]	Viewing Area [z]	Viewing Area [x]	Dot Pixels
Kyocera International, Inc. TCG057VGLDDANN-HN50	Transmissive	CMOS	TFT - Color	5.7 in	144.78 mm	480	640	LED	Blue Green Red
Kyocera International, Inc. TCG057VGLBV-C50	Transmissive		TFT - Color	5.7 in	144.78 mm	480	640	LED	Blue Green Red	0.06 mm	0.18 mm	115.2 mm	86.4 mm
Kyocera International, Inc. TCG057VGLBA-G00	Transmissive		TFT - Color	5.7 in	144.78 mm	480	640	LED	Blue Green Red	0.06 mm	0.18 mm	115.2 mm	86.4 mm
Kyocera International, Inc. TCG057VGLBW-D00	Transmissive		TFT - Color	5.7 in	144.78 mm	480	640	LED	Blue Green Red	0.06 mm	0.18 mm	115.2 mm	86.4 mm
Kyocera International, Inc. TCG057VGLRCANN-GN50		CMOS	TFT - Color	5.7 in	144.78 mm							100.4 mm		127.2 mm
Kyocera International, Inc. TCG057VGLCL-G00
Kyocera International, Inc. TCG057VGLCA-G00	Transmissive		TFT - Color	5.7 in	144.78 mm	480	640	LED	Blue Green Red	0.06 mm	0.18 mm	115.2 mm	86.4 mm
Kyocera International, Inc. TCG057QVLCB-G00
Kyocera International, Inc. TCG057QVLCA-G00	Transmissive		TFT - Color	5.7 in	144.78 mm	240 pixels	320 pixels	LED - White	Blue Green Red	0.12 mm	0.36 mm	115.2 mm	86.4 mm		QVGA
Kyocera International, Inc. TCG057QVLBA-G20	Transmissive		TFT - Color	5.7 in	144.78 mm	240 pixels	320 pixels	LED	Blue Green Red	0.12 mm	0.36 mm	115.2 mm	86.4 mm		QVGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color CMOS 5.7" (144.78mm) 640 x 480 (VGA)

Technical documentation and resources

No documents available
