TS2L4F20C

Active

Switchcraft Inc.

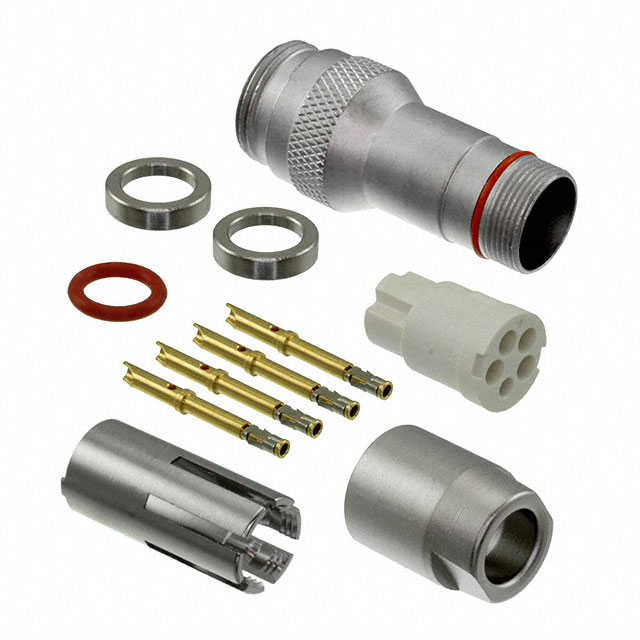

CONN RCPT FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2L4F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Voltage Rating	Contact Material	Color	Shell Finish	Shell Material	Backshell Material, Plating	Contact Finish - Mating	Insert Material	Orientation	Features	Termination	Applications	Connector Type	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Ingress Protection	Mounting Type	Shielding
Switchcraft Inc. TS2L4F20C	125 VAC	Copper Alloy	Silver	Electroless Nickel	Copper Alloy	Copper Alloy, Nickel	Gold	Liquid Crystal Polymer (LCP)	Keyed	Backshell	Crimp, Solder Cup	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Receptacle, Female Sockets	Metal	5.49 mm	4.57 mm	0.18 in	0.216 in	135 °C	-40 °C	4	IP66, IP67, IP68	Free Hanging (In-Line)	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.68

General part information

4 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
