130014

Active

TE Connectivity AMP Connectors

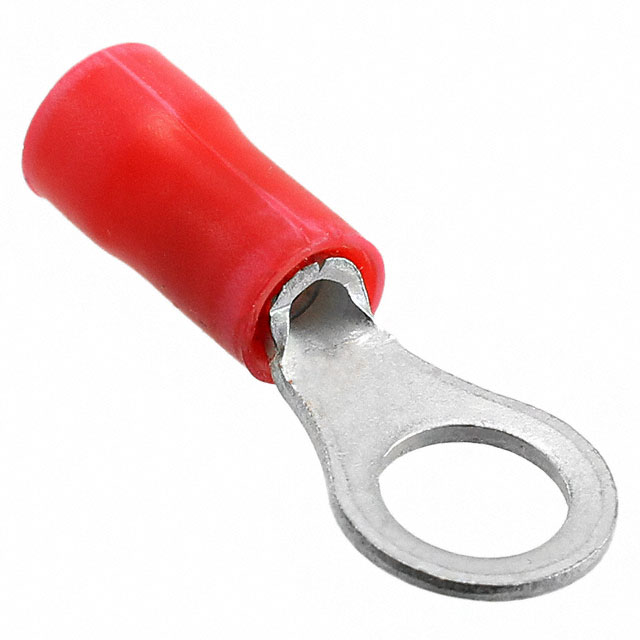

CONN RING CIRC 16-22AWG M5 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 16-22AWG M5 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	130014	1300 Series

Color	Red	Red, Blue
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Features	Serrated Termination	Serrated Termination
Insulation	Insulated	Insulated
Insulation Diameter	-	3.56 mm
Insulation Diameter [Max] [diameter]	0.14 in	0.14 - 4.32 in
Insulation Diameter [Max] [diameter]	3.56 mm	3.56 mm
Insulation Diameter [Min] [diameter]	0.106 in	0.105 - 2.92 in
Insulation Diameter [Min] [diameter]	2.69 mm	2.67 - 2.69 mm
Length - Overall	21.79 mm	21.79 mm
Length - Overall	0.858 in	0.858 in
Length - Overall	-	0.864 - 1.083 in
Length - Overall	-	21.94 - 27.5 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)	Nylon, Polyamide (PA), Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	M5 Stud	M5 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	0.81 mm	0.79 - 0.81 mm
Thickness	0.032 in	0.031 - 0.032 in
Width - Outer Edges	8 mm	8 mm
Width - Outer Edges	0.315 in	0.315 in
Width - Outer Edges	-	11.91 mm
Width - Outer Edges	-	0.469 in
Width - Outer Edges	-	0.343 in
Width - Outer Edges	-	8.71 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	16 AWG	16 AWG

CONN RING CIRC 16-22AWG M5 CRIMP

Part	Thickness	Thickness	Stud/Tab Size	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Finish	Insulation	Termination	Length - Overall [x]	Length - Overall [x]	Color	Mounting Type	Terminal Type	Length - Overall	Length - Overall	Features	Insulation Diameter [Max] [diameter]	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]
TE Connectivity AMP Connectors 130044	0.031 in	0.79 mm	M5 Stud	Nylon, Polyamide (PA)	11.91 mm	0.469 in	22 AWG	16 AWG	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Tin	Insulated	Crimp	1.083 in	27.5 mm	Red	Free Hanging (In-Line)	Circular
TE Connectivity AMP Connectors 130014	0.032 in	0.81 mm	M5 Stud	Poly-Vinyl Chloride (PVC)			22 AWG	16 AWG	Copper	0.14 in	0.106 in		2.69 mm	Tin	Insulated	Crimp			Red	Free Hanging (In-Line)	Circular	21.79 mm	0.858 in	Serrated Termination	3.56 mm	8 mm	0.315 in
TE Connectivity AMP Connectors 130094	0.031 in	0.79 mm	M5 Stud	Nylon, Polyamide (PA)					Copper	0.17 ", 4.32 mm	0.115 in, 2.92 mm			Tin	Insulated	Crimp	0.864 in	21.94 mm	Blue	Free Hanging (In-Line)	Circular			Serrated Termination				0.343 in	8.71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector M5 Stud Circular 16-22 AWG Crimp
