BAC528
ActivePasternack

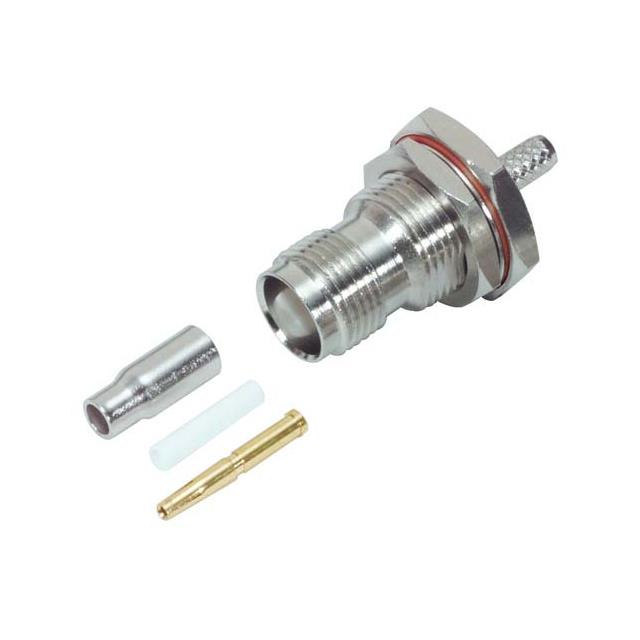

CONN TNC F BHD RG174 CRIMP
BAC528
ActivePasternack
CONN TNC F BHD RG174 CRIMP
Description
General part information
BAC528
TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC528 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Connector Style | TNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
