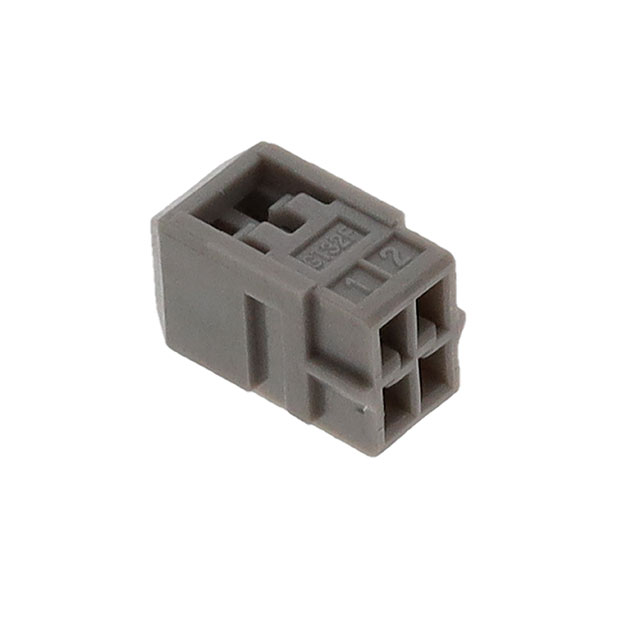

Specification	GT32F-4DP-1.5C

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.059 in

GT32 Series

Part	For Use With/Related Products	Number of Positions	Fastening Type	Pitch - Mating	Contact Finish - Post	Style	Mounting Type	Contact Finish - Mating	Shrouding	Features	Connector Type	Contact Type	Insulation Material	Insulation Height	Number of Rows	Number of Positions Loaded	Contact Shape	Insulation Color	Termination	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Termination	Note	Voltage Rating	Current Rating	Contact Material	Row Spacing - Mating	Accessory Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Length - Post	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Ratcheting	Tool Method	Tool Type
Hirose Electric Co Ltd GT32-19DP-HUB	GT32 Series	19
Hirose Electric Co Ltd GT32-19DP-0.75H		19	Latch Holder	0.059 in	Tin	Board Cable/Wire	Right Angle Surface Mount	Tin	Shrouded - 4 Wall	Shielded Solder Retention	Header	Male Pin	Polyphenylene Sulfide (PPS)	0.501 in	2	All	Square	Gray	Solder
Hirose Electric Co Ltd GT32-4DS-HU(B)		4	Latch Lock				Free Hanging (In-Line)				Receptacle	Female Socket	Polybutylene Terephthalate (PBT)		2					0.059 in	-40 °C	105 °C	Gray	Crimp
Hirose Electric Co Ltd GT32-19DS-0.75CA		19					Free Hanging (In-Line)				Socket	Female Socket	Polybutylene Terephthalate (PBT)		1					0.059 in	-40 °C	105 °C	Gray	Crimp	Contacts Not Included
Hirose Electric Co Ltd GT32-4DP-1.5H(B)(12)		4	Latch Lock	0.059 in	Tin	Board Cable/Wire	Right Angle Surface Mount	Tin	Shrouded - 4 Wall	Solder Retention	Header	Male Pin	Nylon Polyamide (PA)	0.441 in	2	All	Rectangular	Green	Solder		-40 °C	105 °C				30 V	1 A	Copper Alloy	0.059 in
Hirose Electric Co Ltd GT32-10S-SC	GT32 Series	10																												Shield Plate
Hirose Electric Co Ltd GT32-4DS-HU		4	Latch Lock				Free Hanging (In-Line)				Receptacle	Female Socket	Polybutylene Terephthalate (PBT)		2					0.059 in	-40 °C	105 °C	Gray	Crimp
Hirose Electric Co Ltd GT32-2428SCF																								Crimp							28 AWG	24 AWG
Hirose Electric Co Ltd GT32-4DP-1.5H(D)(10)		4		0.03 in		Board Cable/Wire	Through Hole		Shrouded - 4 Wall		Header	Male Pin		0.619 in	2	All	Rectangular		Solder														0.063 in
Hirose Electric Co Ltd GT32-10S-6/CR-MP(01)	Rectangular Contacts																																	24 AWG	28 AWG	No Ratchet	Automated	Applicator for Bench Press

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

GT32F-4DP-1.5C | Datasheet
