391-047-520-107
ActiveEDAC Inc.

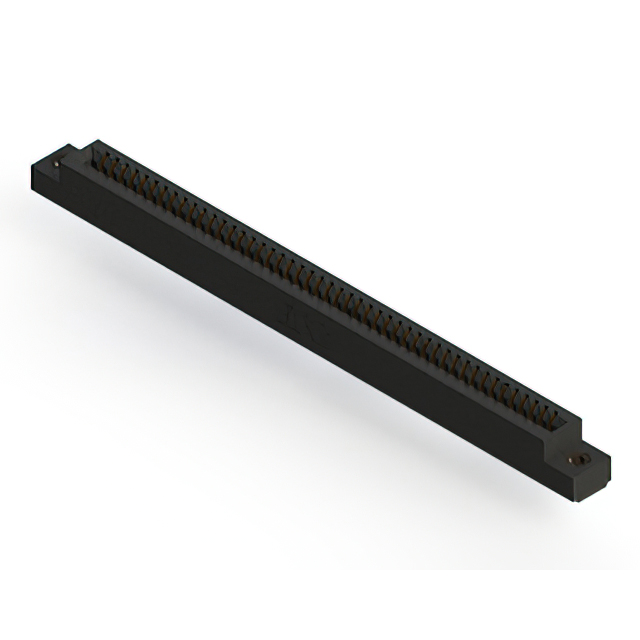

CARD EDGE CONNECTOR, 47 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-047-520-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 47 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, M3, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-047-520-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
391-047 Series
| Part | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Mounting Type | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination Rows | Pitch [x] | Pitch [x] | Card Type | Read Out | Material - Insulation | Number of Positions/Bay/Row [custom] | Gender | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | |||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | |||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in |
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | Copper Alloy | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Semi Bellows | 1 | 2.54 mm | 0.1 in | Non Specified - Single Edge | Single | Polyester Thermoplastic | 47 | Female | 1 | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 20.44 | |
Description
General part information
391-047 Series
47 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
