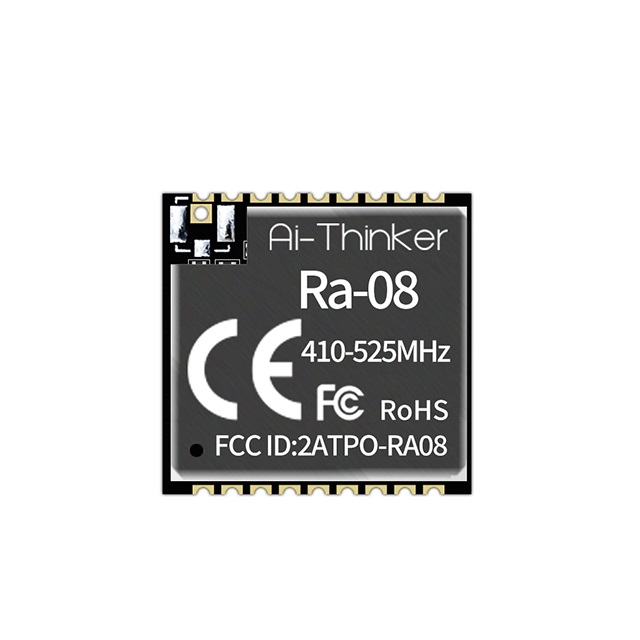

RA-08
ActiveAi-Thinker
RF TXRX MOD ISM<1GHZIPEX SMD
RA-08
ActiveAi-Thinker
RF TXRX MOD ISM<1GHZIPEX SMD
Description
General part information
RA-08
General ISM < 1GHz LoRa™ Transceiver Module 410MHz ~ 525MHz Antenna Not Included, I-PEX Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RA-08 |
|---|---|
| Antenna Type | I-PEX, Antenna Not Included |
| Current - Receiving | 9.5 mA |
| Current - Transmitting | 115 mA |
| Frequency (Max) | 525 MHz |
| Frequency (Min) | 410 MHz |
| Memory Size (Flash) | 128 kB |
| Memory Size (SRAM) | 16 kB |
| Memory Type | SRAM, Flash |
| Modulation | FSK, BPSK, GFSK, MSK, GMSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 18-SMD Module |
| Power - Output | 21 dBm |
| Protocol | LoRa™ |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -138 dBm |
| Serial Interfaces | I2C, PWM, UART, SPI, I2S, GPIO, ADC |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
