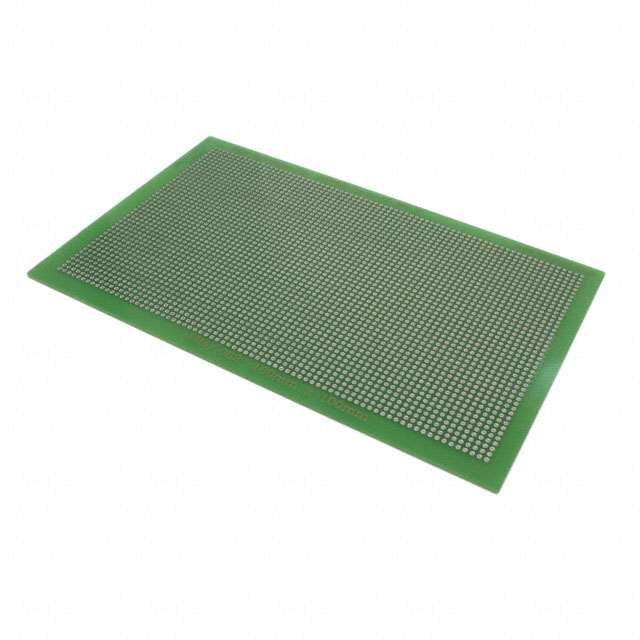

8000-2MM-3U

Active

TWIN INDUSTRIES

BREADBOARD GENERAL PURPOSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8000-2MM-3U

Active

TWIN INDUSTRIES

BREADBOARD GENERAL PURPOSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8000-2MM-3U	8000 Series

Board Thickness	-	0.062 in
Board Thickness	-	0.0625 in
Board Thickness	-	1.57 mm
Circuit Pattern	Pad Per Hole (Round)	Pad Per Hole (Round)
Hole Diameter	-	0.037 in
Hole Diameter	-	0.94 mm
Pitch [x]	0.079 in	0.079 - 0.1 in
Pitch [x]	2 mm	2 - 2.54 mm
Proto Board Type	Breadboard, General Purpose	Breadboard, General Purpose
Size / Dimension [x]	160.02 mm	127 - 508 mm
Size / Dimension [x]	6.3 "	5 - 10 in
Size / Dimension [y]	100.08 mm	100.08 - 254 mm
Size / Dimension [y]	3.94 in	3.94 - 10 "

8000 Series

BREADBOARD GENERAL PURPOSE

Part	Hole Diameter [diameter]	Hole Diameter [diameter]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Pitch [x]	Pitch [x]	Proto Board Type	Circuit Pattern	Board Thickness	Board Thickness	Board Thickness
TWIN INDUSTRIES 8000-410	0.037 in	0.94 mm	254 mm	4 "	10 in	101.6 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-45-LF	0.037 in	0.94 mm	127 mm	4 "	5 in	101.6 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-2MM-3U			160.02 mm	3.94 in	6.3 "	100.08 mm	2 mm	0.079 in	Breadboard, General Purpose	Pad Per Hole (Round)
TWIN INDUSTRIES 8000-1010	0.037 in	0.94 mm	254 mm	10 in	10 in	254 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-410-LF	0.037 in	0.94 mm	254 mm	4 "	10 in	101.6 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-1020	0.037 in	0.94 mm	508 mm			254 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-4565-LF	0.037 in	0.94 mm	165.1 mm	4.5 in	6.5 in	114.3 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-45	0.037 in	0.94 mm	127 mm	4 "	5 in	101.6 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm
TWIN INDUSTRIES 8000-1010-LF	0.037 in	0.94 mm	254 mm	10 in	10 in	254 mm	2.54 mm	0.1 in	Breadboard, General Purpose	Pad Per Hole (Round)	0.062 in	0.0625 in	1.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.50
		5	$ 22.05
		10	$ 21.60
		25	$ 21.15
		50	$ 20.70

Description

General part information

8000 Series

Breadboard, General Purpose Pad Per Hole (Round) 0.079" (2.00mm)

Documents

Technical documentation and resources
