EN2C7M26DC

Active

Switchcraft Inc.

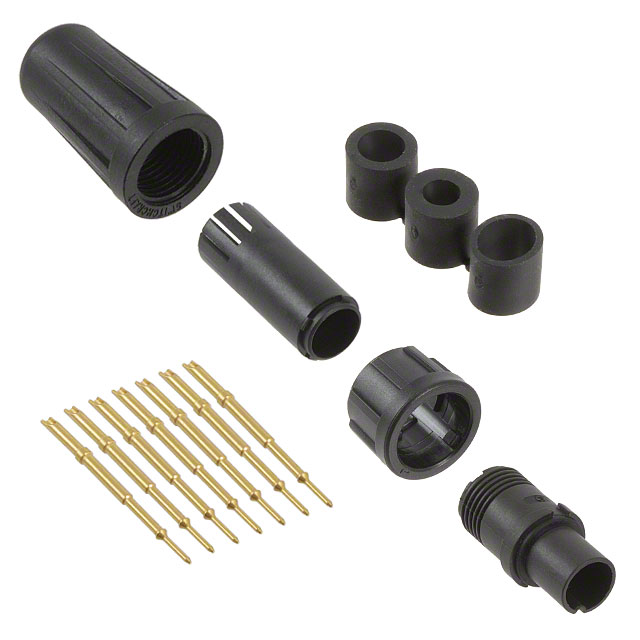

CONN PLUG MALE 7POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C7M26DC

Active

Switchcraft Inc.

CONN PLUG MALE 7POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.48

Description

General part information

EN2C7M Series

7 Position Circular Connector Plug, Male Pins Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C7M26DC	EN2C7M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	7
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C7M Series

CONN PLUG MALE 7POS GOLD CRIMP

Part	Contact Material	Termination	Primary Material	Mounting Type	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Shielding	Orientation	Color	Ingress Protection	Fastening Type	Applications	Material Flammability Rating	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Insert Material	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Switchcraft Inc. EN2C7M26G1W	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7	2.54 mm, 3.56 mm	0.1 in, 0.14 in	125 VAC	Elastomer	Backshell, Coupling Nut, Winged
Switchcraft Inc. EN2C7M26G3	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7			125 VAC	Elastomer	Backshell, Coupling Nut	0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C7M26G2W	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7			125 VAC	Elastomer	Backshell, Coupling Nut, Winged					4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C7M26DC	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7			125 VAC	Elastomer	Backshell, Coupling Nut
Switchcraft Inc. EN2C7M26G1	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7	2.54 mm, 3.56 mm	0.1 in, 0.14 in	125 VAC	Elastomer	Backshell, Coupling Nut
Switchcraft Inc. EN2C7M26G3W	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7			125 VAC	Elastomer	Backshell, Coupling Nut, Winged	0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C7M26G2	Copper Alloy	Crimp, Solder Cup	Plastic	Free Hanging (In-Line)	Thermoplastic	85 °C	-40 °C	Male Pins, Plug	Gold	Unshielded	Keyed	Black	IP66, IP67, IP68	Bayonet Lock	Communication Systems, Industrial, Marine, Medical	UL94 V-0	7			125 VAC	Elastomer	Backshell, Coupling Nut					4.57 mm	3.56 mm	0.14 in	0.18 in
