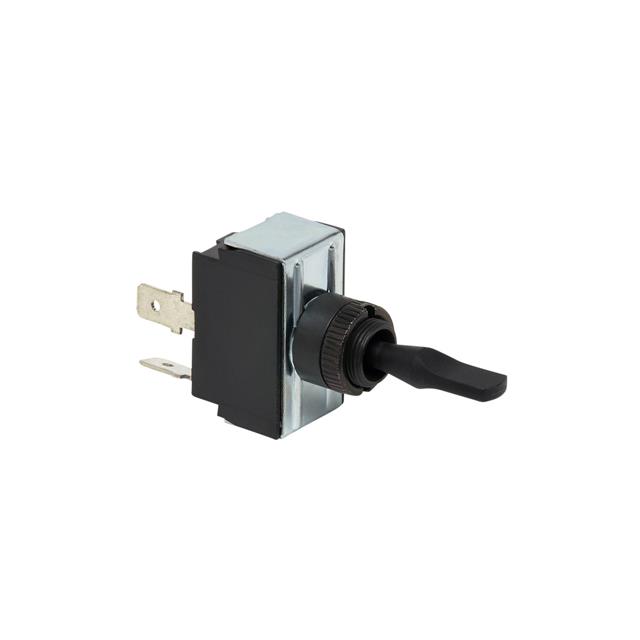

59024-12

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 11.63

General part information

Toggle Switch SPST Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	59024-12	59024 Series

Actuator Length [x]	1 in	1 in
Actuator Material	Plastic	Plastic
Actuator Type	Paddle	Paddle
Bushing Thread	15/32-32	15/32-32
Circuit	SPST	SPDT, DPST, SPST, DPDT
Current Rating (Amps)	25 A	25 A
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm	11.9 mm
Switch Function	On-Off	Mom-Off-Mom, On-Off, On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Screw Terminal
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPDT 25A 12V

Part	Illumination	Actuator Length [x]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Actuator Material	Current Rating (Amps)	Bushing Thread	Circuit	Termination Style	Actuator Type	Switch Function
Cole Hersee 59024-108	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	SPDT	Quick Connect - 0.250" (6.3mm)	Paddle	Mom-Off-Mom
Cole Hersee 59024-110	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	DPST	Quick Connect - 0.250" (6.3mm)	Paddle	On-Off
Cole Hersee 59024-100	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	SPST	Quick Connect - 0.250" (6.3mm)	Paddle	On-Off
Cole Hersee 59024-106	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	SPDT	Quick Connect - 0.250" (6.3mm)	Paddle	On-Off-On
Cole Hersee 59024-12	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	SPST	Quick Connect - 0.250" (6.3mm)	Paddle	On-Off
Cole Hersee 59024-126	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	DPDT	Quick Connect - 0.250" (6.3mm)	Paddle	Mom-Off-Mom
Cole Hersee 59024-200	Non-Illuminated	1 in	12 V	11.9 mm	Plastic	25 A	15/32-32	SPST	Screw Terminal	Paddle	On-Off
