Description
General part information
2M801-007-26MT8-2SA

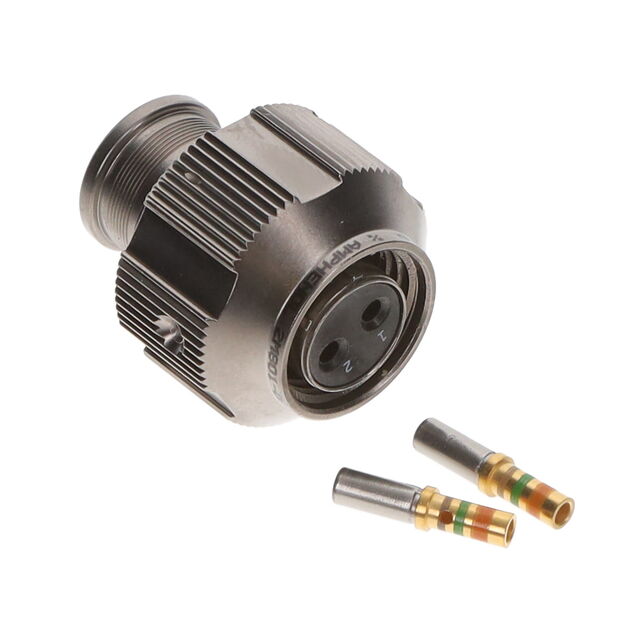

2 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 2M801-007-26MT8-2SA |
|---|---|
| Applications | Industrial, Military, Aerospace |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 13 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection | Environment Resistant |
| Insert Material | Polyphenylene Sulfide, PPS |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Durmalon™ |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 2 |
| Shell Size - Insert | 2 |
| Shielding | Shielded |
| Termination | Crimp |
