ENG.0B.305.CLN

Active

LEMO

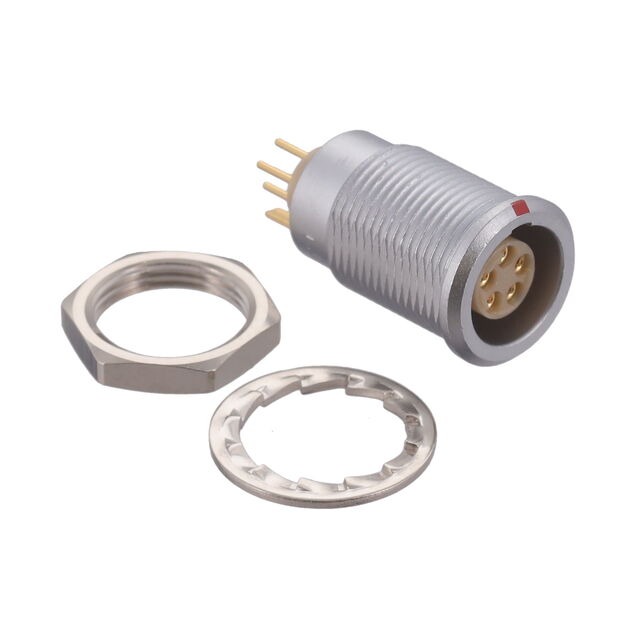

CONN RCPT FMALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ENG.0B.305.CLN	ENG.0B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	6.5 A	2.5 - 7 A
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	-	4 - 7
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	304 - 307
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Mounting Feature	Number of Positions	Fastening Type	Connector Type	Ingress Protection	Insert Material	Shell Size - Insert	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Orientation	Shell Finish	Contact Material	Primary Material	Features	Current Rating (Amps)	Mounting Type	Termination
LEMO ENG.0B.307.CLL	UL94 V-0	59 Áin	1.5 Ám	Brass	Bulkhead - Rear Side Nut	7	Push-Pull	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	307	Gold	-55 °C	250 °C	Shielded	Silver	G	Chrome	Bronze	Metal	Ground	2.5 A
LEMO ENG.0B.304.CLL	UL94 V-0	59 Áin	1.5 Ám	Brass	Bulkhead - Rear Side Nut	4	Push-Pull	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	304	Gold	-55 °C	250 °C	Shielded	Silver	G	Chrome	Bronze	Metal	Ground	7 A
LEMO ENG.0B.305.CLL	UL94 V-0	59 Áin	1.5 Ám	Brass	Bulkhead - Rear Side Nut		Push-Pull	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	305	Gold	-55 °C	250 °C	Shielded	Silver	G	Chrome	Bronze	Metal	Ground	6.5 A
LEMO ENG.0B.305.CLN	UL94 V-0	59 Áin	1.5 Ám	Brass	Bulkhead - Rear Side Nut		Push-Pull	Receptacle, Female Sockets	IP50	Polyetheretherketone (PEEK)	305	Gold	-55 °C	250 °C	Shielded	Silver	G	Chrome	Bronze	Metal	Ground	6.5 A	Panel Mount, Through Hole	Solder
