Y009511R0000B0L
ActiveVPG Foil Resistors
VTA56Z 11R000 0.1%
Y009511R0000B0L
ActiveVPG Foil Resistors
VTA56Z 11R000 0.1%
Description
General part information
Y009511R0000B0L

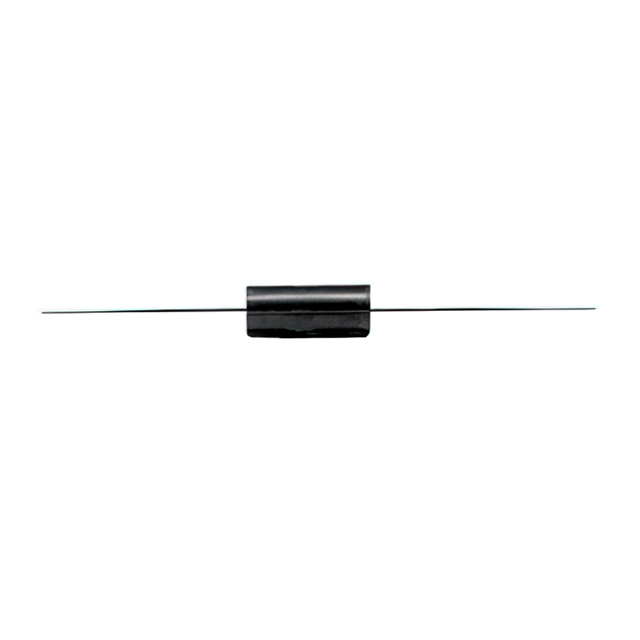

11 Ohms ±0.1% 0.25W, 1/4W Through Hole Resistor Axial Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y009511R0000B0L |
|---|---|
| Composition | Metal Foil |
| Features | Non-Inductive |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 11 Ohm |
| Size / Dimension Diameter | 0.26 in |
| Size / Dimension Length | 0.356 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.1 % |
