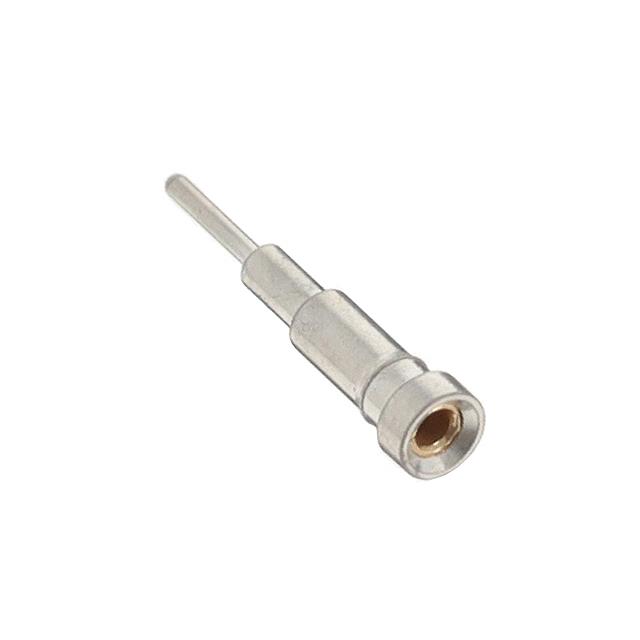

0153-1-15-80-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0153-1-15-80-30-27-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.354 in
Length - Overall [x]	9 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.146 in
Socket Depth	3.71 mm
Tail Diameter [diameter]	0.46 mm
Tail Diameter [diameter]	0.018 in
Tail Type	Standard Tail
Termination	Press-Fit

Part	Contact Finish Thickness	Contact Finish Thickness	Termination	Socket Depth	Socket Depth	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0153-1-15-80-30-14-04-0	10 Áin	0.25 Ám	Press-Fit	0.146 in	3.71 mm	Standard Tail	1.83 mm	0.072 in	Gold	0.46 mm	0.018 in	0.354 in	9 mm	0.057 "	1.45 mm	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0153-1-15-15-30-14-04-0	10 Áin	0.25 Ám	Press-Fit	0.146 in	3.71 mm	Standard Tail	1.83 mm	0.072 in	Gold	0.46 mm	0.018 in	0.354 in	9 mm	0.057 "	1.45 mm	Beryllium Copper					-55 °C	125 °C
Mill-Max Manufacturing Corp. 0153-1-15-80-30-84-04-0	100 µin	2.54 µm	Press-Fit	0.146 in	3.71 mm	Standard Tail	1.83 mm	0.072 in	Tin	0.46 mm	0.018 in	0.354 in	9 mm	0.057 "	1.45 mm	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0153-1-15-80-30-27-04-0	30 Áin	0.76 Ám	Press-Fit	0.146 in	3.71 mm	Standard Tail	1.83 mm	0.072 in	Gold	0.46 mm	0.018 in	0.354 in	9 mm	0.057 "	1.45 mm	Beryllium Copper	0.025 "	0.64 mm	0.015 "	0.38 mm	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
