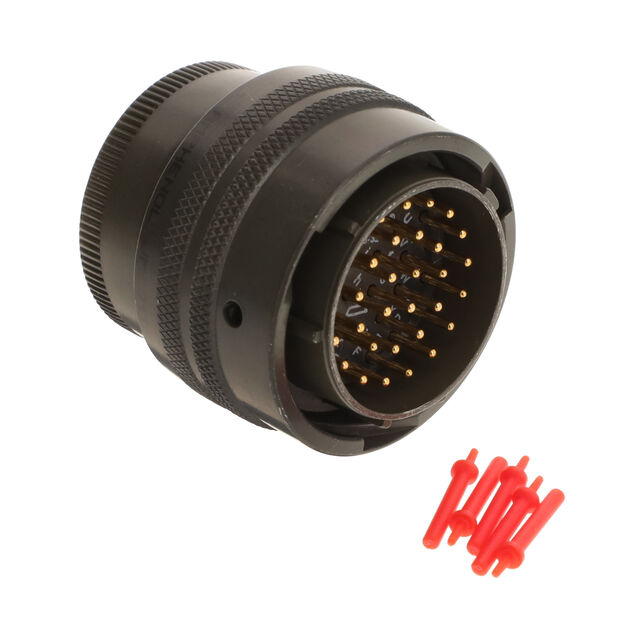

MS3116E18-32P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116E18-32P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116E18-32P | MS3116E18 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 11 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | - | 18-11 |
| Shell Size - Insert [Max] | 32 | 32 |
| Shell Size - Insert [Min] | 18 | 18 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 130.53 | |
| 10 | $ 119.78 | |||
| 25 | $ 115.17 | |||
| 50 | $ 111.33 | |||
MS3116E18 Series
PLUG
| Part | Shell Material | Ingress Protection | Connector Type | Qualification | Mounting Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Applications | Shell Finish | Insert Material | Orientation | Primary Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Color | Contact Material | Grade | Current Rating (Amps) | Shielding | Features | Fastening Type | Number of Positions | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116E18-30S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3116E18-32S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3116E18-32P | Aluminum Alloy | Environment Resistant | Male Pins, Plug | MIL-DTL-26482 Series I | Free Hanging (In-Line) | 32 | 18 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | N | Metal | 600 VAC | -55 °C | 125 °C | Gold | Olive Drab | Copper Alloy | Military | 7.5 A | Unshielded | Backshell | Bayonet Lock | ||
Amphenol Industrial Operations MS3116E18-11P | Aluminum Alloy | Environment Resistant | Male Pins, Plug | MIL-DTL-26482 Series I | Free Hanging (In-Line) | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab Chromate over Cadmium | Neoprene | N | Metal | 1000 VAC | -55 °C | 125 °C | Gold | Olive Drab | Copper Alloy | Military | 13 A | Unshielded | Backshell | Bayonet Lock | 11 | 18-11 |
Description
General part information
MS3116E18 Series
32 Position Circular Connector Plug, Male Pins Solder Cup
