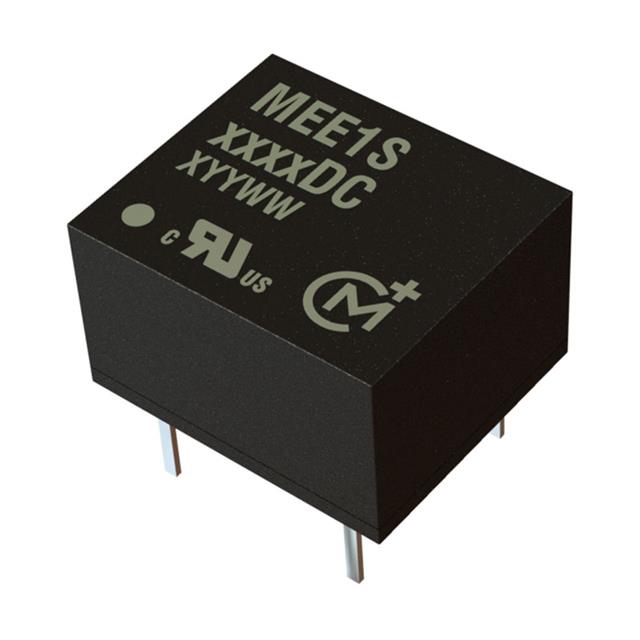

MEE1S1215DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MEE1S1215DC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MEE1S1215DC | MEE1S12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 67 mA | 67 - 200 mA |
| Efficiency | 86.5 % | 83.5 - 86.5 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 4-DIP Module | 4-DIP Module, 8-DIP Module, 4-SIP Module |
| Package / Case | - | 4 Lead |
| Size / Dimension [x] | 11.5 mm | 11.5 mm |
| Size / Dimension [x] | 0.45 in | 0.45 in |
| Size / Dimension [y] | 9.8 mm | 6 - 9.8 mm |
| Size / Dimension [y] | 0.39 " | 0.24 - 0.39 " |
| Size / Dimension [z] | 0.27 " | 0.27 - 0.39 " |
| Size / Dimension [z] | 6.8 mm | 6.8 - 10 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V | 10.8 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 15 V | 5 - 15 V |
MEE1S12 Series
DC DC CONVERTER 15V 1W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Current - Output (Max) [Max] | Applications | Number of Outputs | Type | Package / Case | Efficiency | Voltage - Isolation | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MEE1S1215DC | 85 °C | -40 °C | 15 V | 10.8 V | Through Hole | 67 mA | ITE (Commercial) | 1 | Isolated Module | 4-DIP Module | 86.5 % | 1000 V | 13.2 V | 11.5 mm | 9.8 mm | 0.27 " | 0.45 in | 6.8 mm | 0.39 " | |
Murata Power Solutions Inc. MEE1S1209DC | 85 °C | -40 °C | 9 V | 10.8 V | Through Hole | ITE (Commercial) | 1 | Isolated Module | 8-DIP Module | 84 % | 1000 V | 13.2 V | 11.5 mm | 9.8 mm | 0.27 " | 0.45 in | 6.8 mm | 0.39 " | 4 Lead | |
Murata Power Solutions Inc. MEE1S1205SC | 85 °C | -40 °C | 5 V | 10.8 V | Through Hole | 200 mA | ITE (Commercial) | 1 | Isolated Module | 4-SIP Module | 83.5 % | 1000 V | 13.2 V | 11.5 mm | 6 mm | 0.39 in | 0.45 in | 10 mm | 0.24 " | |
Murata Power Solutions Inc. MEE1S1215SC | 85 °C | -40 °C | 15 V | 10.8 V | Through Hole | 67 mA | ITE (Commercial) | 1 | Isolated Module | 4-SIP Module | 86.5 % | 1000 V | 13.2 V | 11.5 mm | 6 mm | 0.39 in | 0.45 in | 10 mm | 0.24 " | |
Murata Power Solutions Inc. MEE1S1212SC | 85 °C | -40 °C | 12 V | 10.8 V | Through Hole | 83 mA | ITE (Commercial) | 1 | Isolated Module | 4-SIP Module | 85 % | 1000 V | 13.2 V | 11.5 mm | 6 mm | 0.39 in | 0.45 in | 10 mm | 0.24 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MEE1S12 Series
Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input
