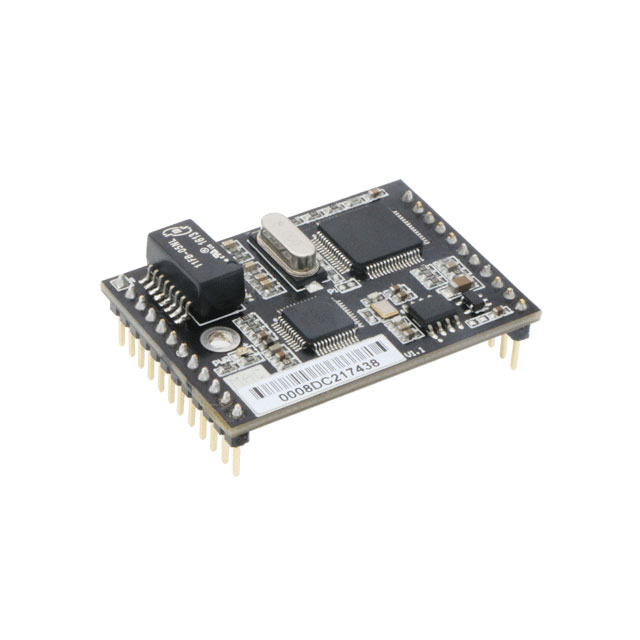

W5500S2E-Z1

Active

WIZnet

ETHERNET CTLR SINGLE CHIP 10MBPS/100MBPS 3.3V 23-PIN

Search across all available documentation for this part.

Active

WIZnet

ETHERNET CTLR SINGLE CHIP 10MBPS/100MBPS 3.3V 23-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ethernet Bridge, RS232 to TCP/IP 10/100 Base-T/TX PHY Serial Interface Module

Technical documentation and resources

No documents available

Part	Function	Type	Contents	Supplied Contents	Utilized IC / Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Package / Case	Interface	Current - Supply	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]
WIZnet W5500-EVB	Ethernet	Interface	Board(s)	Board(s)	W5500
WIZnet W5500 ETHERNET SHIELD	Ethernet	Interface	Board(s)	Board(s)	W5500
WIZnet W5500S2E-Z1	Bridge, RS232 to TCP/IP					Module	85 °C	-40 °C	10/100 Base-T/TX PHY	Module	Serial	106 mA	Ethernet
WIZnet W5500S2E-S1	Bridge, RS232 to TCP/IP					Module	85 °C	-40 °C	10/100 Base-T/TX PHY	Module	Serial	106 mA	Ethernet	3.6 V	2.97 V
