ECA.0B.305.CLL
ActiveLEMO

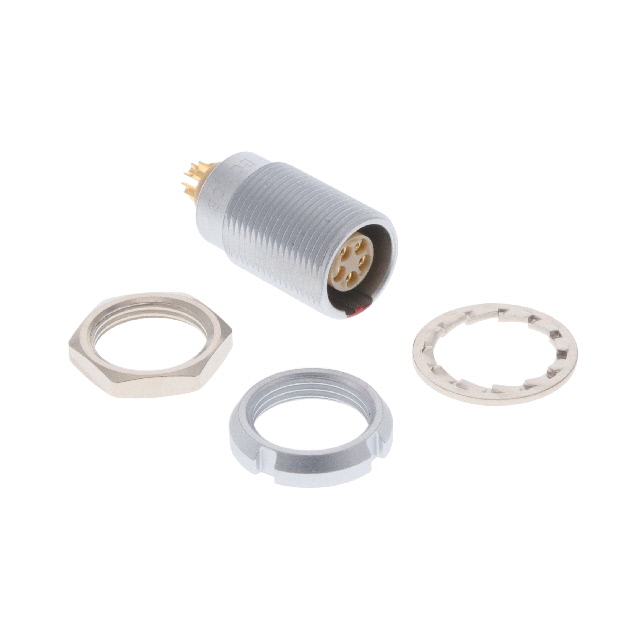

CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECA.0B.305.CLL
ActiveLEMO
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECA.0B.305.CLL | ECA.0B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Insert Shell |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 6.5 A | 6.5 - 7 A |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Housing Color | - | Black |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Note | - | Contacts Not Included; Insert Not Included |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Anodized |
| Shell Material | Brass | Brass, Aluminum Alloy |
| Shell Size - Insert | 305 | 304 - 305 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Crimp |
ECA.0B Series
CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Connector Type | Insert Material | Shell Finish | Shell Material | Orientation | Mounting Type | Primary Material | Contact Finish - Mating | Shielding | Ingress Protection | Fastening Type | Material Flammability Rating | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Termination | Contact Material | Note | Housing Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECA.0B.305.CLN | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Chrome | Brass | A | Panel Mount, Through Hole | Metal | Gold | Shielded | IP50 | Push-Pull | UL94 V-0 | 305 | -55 °C | 250 °C | 6.5 A | Front and Rear Side Nut | 59 Áin | 1.5 Ám | Silver | Solder | Bronze | |||
LEMO ECA.0B.200.LC | Insert Shell | Anodized | Aluminum Alloy | A | Shielded | IP50 | Detent Lock, Push-Pull | -55 °C | 250 °C | Bulkhead - Front Side Nut | Contacts Not Included; Insert Not Included | Black | |||||||||||||
LEMO ECA.0B.304.CYM | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Chrome | Brass | A | Metal | Gold | Shielded | IP50 | Push-Pull | UL94 V-0 | 304 | -55 °C | 250 °C | 7 A | Front and Rear Side Nut | 59 Áin | 1.5 Ám | Silver | Crimp | Bronze | 4 | |||
LEMO ECA.0B.305.CLL | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Chrome | Brass | A | Metal | Gold | Shielded | IP50 | Push-Pull | UL94 V-0 | 305 | -55 °C | 250 °C | 6.5 A | Front and Rear Side Nut | 59 Áin | 1.5 Ám | Silver | Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.75 | |
Description
General part information
ECA.0B Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
