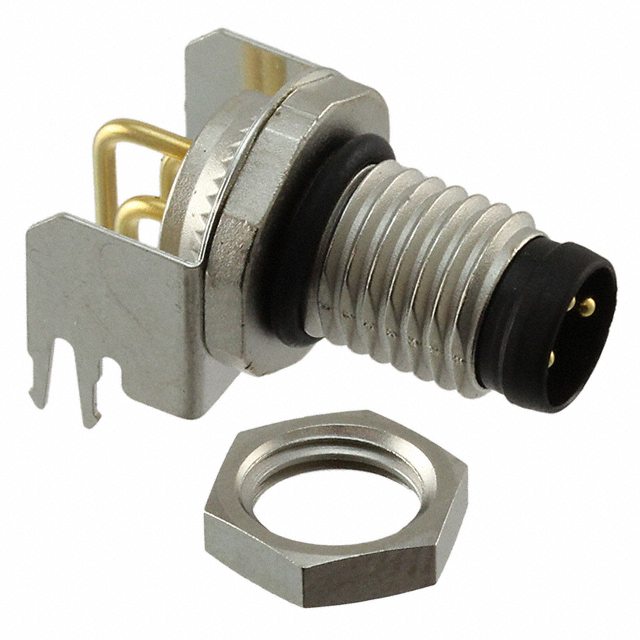

1456035
ActivePhoenix Contact
CONN PLUG MALE 3POS GOLD SOLDER
1456035
ActivePhoenix Contact
CONN PLUG MALE 3POS GOLD SOLDER
Description
General part information
1456035
3 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1456035 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Board Lock |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M8-3 |
| Termination | Solder |
| Voltage Rating (AC) | 50 VAC |
| Voltage Rating (DC) | 60 VDC |
