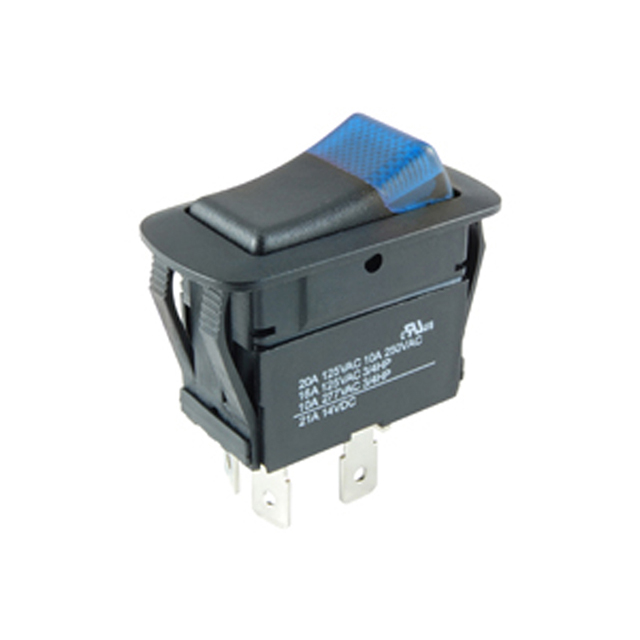

54-234W

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 21A 14V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 21A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	54-234W

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A
Illumination Type, Color	Neon, Blue
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

Part	Mounting Type	Color - Actuator/Cap	Ingress Protection	Actuator Marking	Circuit	Termination Style	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function
NTE Electronics, Inc 54-234W	Panel Mount Snap-In	Black	IP65 - Dust Tight Water Resistant	No Marking	SPST	Quick Connect - 0.250" (6.3mm)	14 V	Concave (Curved) - Illuminated	21 A	Blue Neon	65 °C	0 °C	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 21A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
