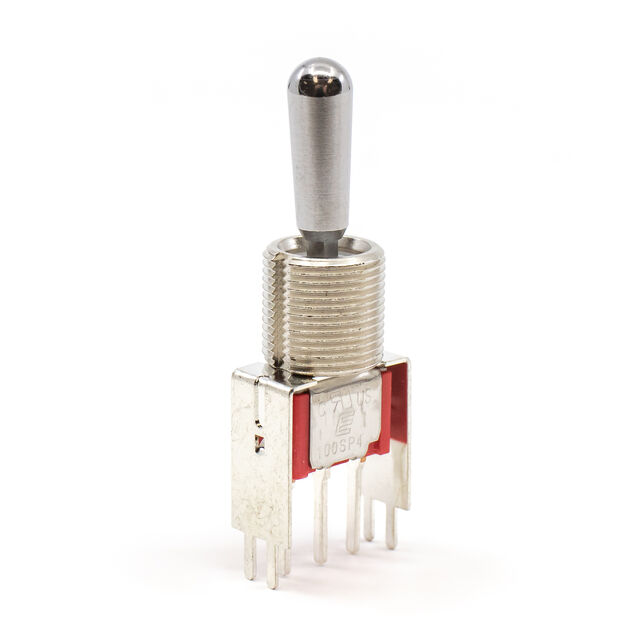

100SP4T8B13VS3QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

100SP4T8B13VS3QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP4T8B13VS3QE	100SP4 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	17.98 mm	5.08 - 18 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation
Bushing Thread	15/32-32	1/4-40, Unthreaded, 15/32-32, M6 x 0.75
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Right Angle, Panel Mount, Through Hole, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	11.91 mm	0.25 - 11.91 in
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	PC Pin	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100SP4 Series

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Material	Circuit	Actuator Length [x]	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Voltage Rating - DC	Features	Actuator Length [custom]	Mounting Type
E-Switch 100SP4T1B3M2QE	Standard Round	Non-Illuminated	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.19 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T6B11M2QEH	Flat Anti-Rotation	Non-Illuminated	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.3 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T2B3M6RE	Standard Round	Non-Illuminated	0.25 in	1/4-40	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT		0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals	6.86 mm	Panel Mount, Right Angle
E-Switch 100SP4T1B4VS31RE	Standard Round	Non-Illuminated		Unthreaded	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	10.41 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals		Through Hole
E-Switch 100SP4T4B4M7RE	Standard Round	Non-Illuminated		Unthreaded	PC Pin	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	16.26 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals		Right Angle, Through Hole, Vertical
E-Switch 100SP4T1B1M1QEH	Standard Round	Non-Illuminated	0.25 in	1/4-40	Solder Lug	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	10.41 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T1B9M1QEH	Standard Round	Non-Illuminated	0.25 in	1/4-40	Solder Lug	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	10.41 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T7B13M54QEH	Standard Round	Non-Illuminated	11.91 mm	15/32-32	Wire Wrap	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	13 mm	5 A	40000 Cycles	120 V	28 V	Epoxy Sealed Terminals
E-Switch 100SP4T6B11M1REH	Flat Anti-Rotation	Non-Illuminated	0.25 in	1/4-40	Solder Lug	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.3 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals
E-Switch 100SP4T6B11M51REH	Flat Anti-Rotation	Non-Illuminated	0.25 in	1/4-40	Wire Wrap	-30 ░C	85 °C	Mom-Off-Mom	Brass, Chrome Plated	SPDT	12.3 mm	0.4 VA	40000 Cycles	20 V	20 V	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.93

Description

General part information

100SP4 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available
