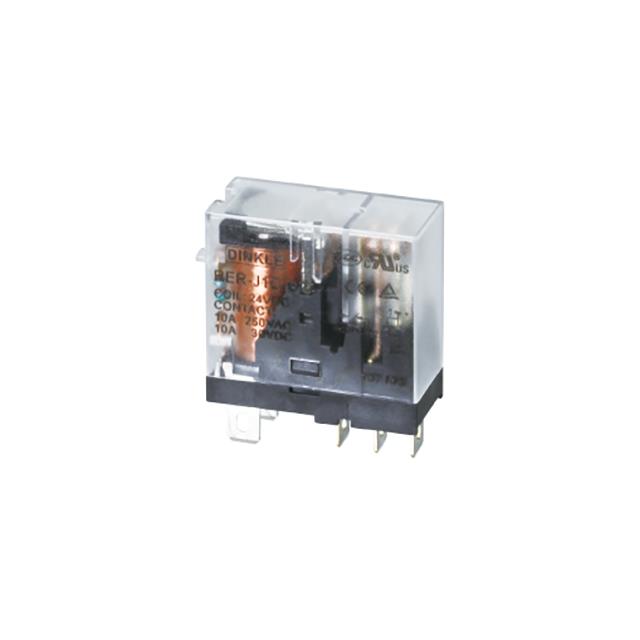

RER-J1C-A120

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 10A 120V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 10A 120V

Part	Termination Style	Coil Voltage	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Switching Voltage [Max]	Coil Resistance	Coil Type	Operate Time	Must Operate Voltage	Contact Form	Mounting Type	Must Release Voltage	Contact Rating (Current)	Coil Current	Release Time	Relay Type
Dinkle Corporation, USA RER-J1C-A120	Plug In, Quick Connect - 0.187" (4.7mm)	120 VAC	Silver Tin Oxide (AgSnO)	-40 °C	55 °C	Lighted Indicator	30 VDC, 250 VAC	4.43 kOhms	Non Latching	20 ms	96 VAC	SPDT (1 Form C)	Socketable	36 VAC	10 A	7.6 mA	20 ms	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 120VAC Coil Socketable
