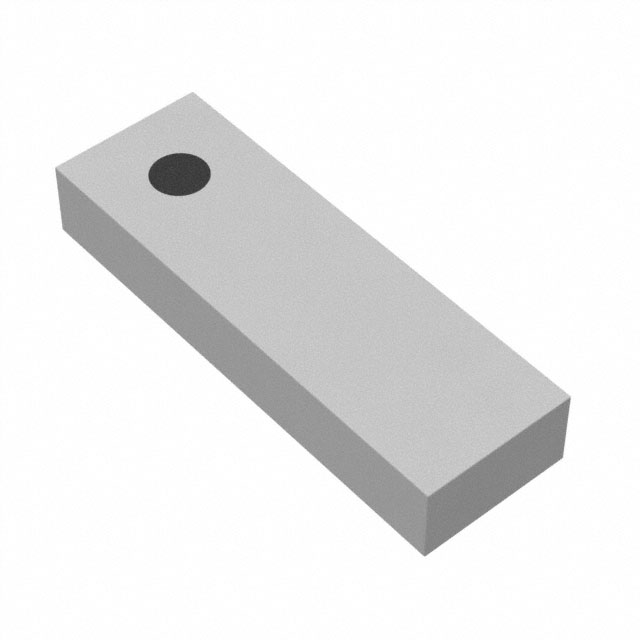

ANT1003LL15R2455A

Active

Pulse Electronics

RF ANT 2.442GHZ/5.35GHZ CHIP SLD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 2.442GHZ/5.35GHZ CHIP SLD

Technical Specifications

Parameters and characteristics for this part

Specification	ANT1003LL15R2455A

Antenna Type	Chip
Applications	ISM
Frequency (Center/Band) [custom]	5.35 GHz
Frequency (Center/Band) [custom]	2.442 GHz
Frequency Group	4 GHz
Frequency Group [Max]	3 GHz
Frequency Group [Min]	2 GHz
Frequency Range [Max]	5.85 GHz, 2.484 GHz
Frequency Range [Min]	2.4 GHz, 5.15 GHz
Gain	1.55 dBi, 2.45 dBi
Height (Max) [Max]	0.063 in
Height (Max) [Max]	1.6 mm
Mounting Type	Surface Mount
Number of Bands	2
Power - Max [Max]	1 W
Return Loss	6.5 dB
RF Family/Standard	General ISM
Termination	Solder

RF ANT 2.442GHZ/5.35GHZ CHIP SLD

Part	Height (Max) [Max]	Height (Max) [Max]	Applications	RF Family/Standard	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency Range [Max]	Frequency Range [Min]	Return Loss	Mounting Type	Frequency (Center/Band) [custom]	Frequency (Center/Band) [custom]	Number of Bands	Antenna Type	Termination	Power - Max [Max]
Pulse Electronics ANT1003LL15R2455A	0.063 in	1.6 mm	ISM	General ISM	1.55 dBi, 2.45 dBi	4 GHz	2 GHz	3 GHz	2.484 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	6.5 dB	Surface Mount	5.35 GHz	2.442 GHz	2	Chip	Solder	1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.442GHz, 5.35GHz ISM Chip RF Antenna 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz 1.55dBi, 2.45dBi Solder Surface Mount
