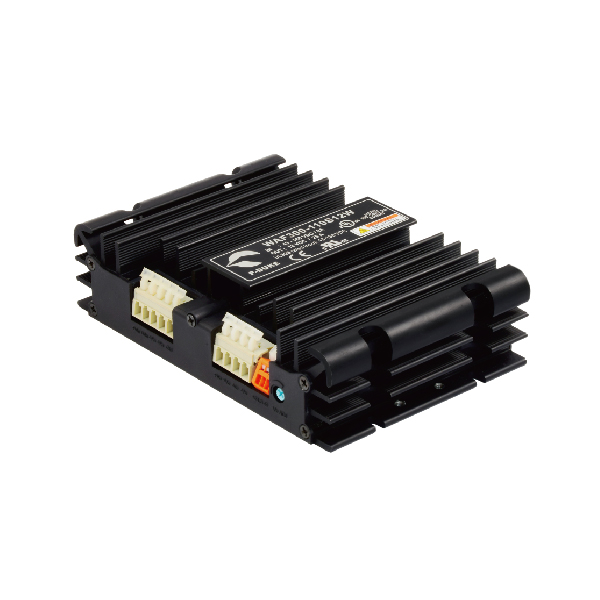

WAF300-48S12W

Active

P-DUKE Technology

DC/DC CONVERTER 12V 300W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC/DC CONVERTER 12V 300W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 12V 25A 75V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	WAF300-48S12W	WAF300 Series

Applications	Railway, Industrial, ITE (Commercial)	Railway, Industrial, ITE (Commercial)
Approval Agency	CE, cURus, cULus	CE, cURus, cULus
Current - Output (Max) [Max]	25 A	10.8 - 25 A
Efficiency	89 %	89 - 92 %
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	300 W	300 - 302 W
Size / Dimension [x]	152.4 mm	152.4 mm
Size / Dimension [x]	6 in	6 in
Size / Dimension [y]	4.01 in	4.01 in
Size / Dimension [y]	101.9 mm	101.9 mm
Size / Dimension [z]	38.6 mm	38.6 mm
Size / Dimension [z]	1.52 in	1.52 in
Standard Number	50155, 60950-1, UL 508, 62368-1	50155, 60950-1, UL 508, 62368-1
Type	Enclosed	Enclosed
Voltage - Input (Max) [Max]	75 V	75 - 160 V
Voltage - Input (Min) [Min]	18 V	18 - 43 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	12 - 28 V

DC/DC CONVERTER 24V 300W

Part	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Output 1	Type	Voltage - Isolation	Applications	Efficiency
P-DUKE Technology WAF300-48S24W	12.5 A	300 W	18 V	-40 °C	100 °C	50155, 60950-1, 62368-1, UL 508	75 V	1	Chassis Mount	152.4 mm	38.6 mm	6 in	4.01 in	101.9 mm	1.52 in	CE, cULus, cURus	24 V	Enclosed	3000 V	Industrial, ITE (Commercial), Railway	92 %
P-DUKE Technology WAF300-48S12W	25 A	300 W	18 V	-40 °C	100 °C	50155, 60950-1, 62368-1, UL 508	75 V	1	Chassis Mount	152.4 mm	38.6 mm	6 in	4.01 in	101.9 mm	1.52 in	CE, cULus, cURus	12 V	Enclosed	3000 V	Industrial, ITE (Commercial), Railway	89 %
P-DUKE Technology WAF300-110S24W	12.5 A	300 W	43 V	-40 °C	100 °C	50155, 60950-1, 62368-1, UL 508	160 V	1	Chassis Mount	152.4 mm	38.6 mm	6 in	4.01 in	101.9 mm	1.52 in	CE, cULus, cURus	24 V	Enclosed	3000 V	Industrial, ITE (Commercial), Railway	91 %
P-DUKE Technology WAF300-48S28W	10.8 A	302 W	18 V	-40 °C	100 °C	50155, 60950-1, 62368-1, UL 508	75 V	1	Chassis Mount	152.4 mm	38.6 mm	6 in	4.01 in	101.9 mm	1.52 in	CE, cULus, cURus	28 V	Enclosed	3000 V	Industrial, ITE (Commercial), Railway	91 %
