2EHDR-02P-BK
ActiveDinkle Corporation, USA
TERM BLK 2POS 5.08MM HDR
2EHDR-02P-BK
ActiveDinkle Corporation, USA
TERM BLK 2POS 5.08MM HDR
Description
General part information
2EHDR-02P-BK

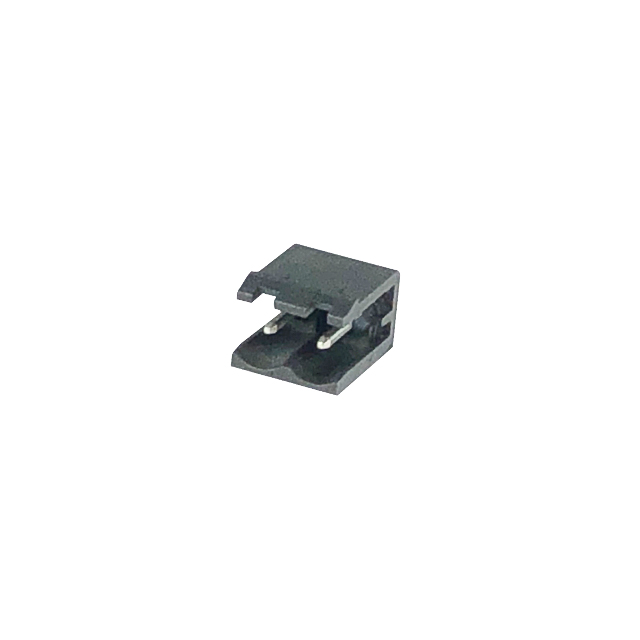

2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EHDR-02P-BK |
|---|---|
| Color | Black |
| Current - IEC | 18 A |
| Current - UL | 15 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Positions Per Level | 2 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - IEC | 600 A, 600 V |
| Voltage - UL | 300 A, 300 V |
