CB0.81-2IPX-8IN-6O

Active

Lighthorse Technologies, Inc

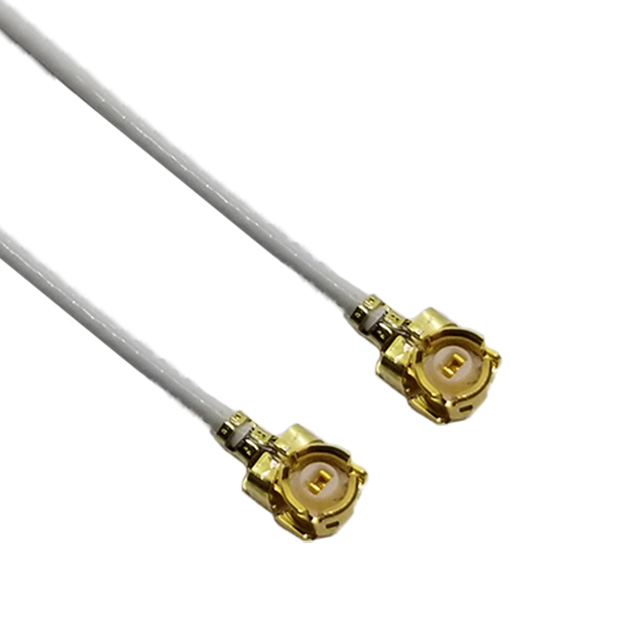

CBL ASSY IPEX MHF1 PLUG-PLUG 8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB0.81-2IPX-8IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLUG-PLUG 8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CB0.81-2IPX-8IN-6O	CB0.81 Series

1st Connector	Right Angle, IPEX MHF1 Plug, U.FL (UMCC)	IPEX MHF4L Plug, Right Angle, U.FL (UMCC), Right Angle, I-PEX MHF1 Plug, IPEX MHF1 Plug, I-PEX MHF4L Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	IPEX MHF4L Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC), U.FL (UMCC), IPEX MHF1 Plug, Right Angle, I-PEX MHF4L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	Coaxial Cable	Coaxial Cable
Cable Type [diameter]	0.81 mm	0.81 mm
Color	White	White
Features	Opposite Orientation, Shielded	Shielded, Opposite Orientation
Frequency - Max [Max]	9 GHz	9 - 12 GHz
Length	8 in	1.5 - 12 "
Length	203.2 mm	38.1 - 304.8 mm
Length	-	1 - 12.5 in
Length	-	25.4 - 317.5 mm
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1	IPEX MHF4L to IPEX MHF4L, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC), I-PEX MHF1, IPEX MHF1 to U.FL (UMCC), IPEX MHF1, I-PEX MHF4L to I-PEX MHF4L

CB0.81 Series

CBL ASSY MHF4L-MHF4L PL-PL 1.5"

Part	1st Contact Gender	2nd Connector	Cable Impedance	Overall Impedance	Color	1st Connector Mounting Type	Style	Cable Type	Cable Type [diameter]	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length	1st Connector	Features	Operating Temperature [Max]	Operating Temperature [Min]	2nd Contact Gender	Length [x]	Length [x]
Lighthorse Technologies, Inc CB0.81-2IPX4L-1.5IN	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz	1.5 "	38.1 mm	IPEX MHF4L Plug, Right Angle	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-6IN	Female	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	6 in	152.4 mm	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-4.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	4.5 in	114.3 mm	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-5.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz			IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female	5.5 in	139.7 mm
Lighthorse Technologies, Inc CB0.81-2IPX-8.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz			IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX4L-10IN	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz	10 in	254 mm	IPEX MHF4L Plug, Right Angle	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX4L-8.5IN	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz			IPEX MHF4L Plug, Right Angle	Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX4L-6.5IN-6O	Female	IPEX MHF4L Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF4L to IPEX MHF4L	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	12 GHz			IPEX MHF4L Plug, Right Angle	Opposite Orientation, Shielded	90 °C	-40 °C	Female	6.5 in	165.1 mm
Lighthorse Technologies, Inc CB0.81-2IPX-11.5IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	11.5 "	292.1 mm	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
Lighthorse Technologies, Inc CB0.81-2IPX-3IN-6O	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	50 Ohms	50 Ohms	White	Free Hanging (In-Line)	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	9 GHz	3 in	76.2 mm	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Opposite Orientation, Shielded	90 °C	-40 °C	Female
