BOS 903
ActiveBopla Enclosures
BOX ABS GRAY 8.31"L X 3.94"W
BOS 903
ActiveBopla Enclosures
BOX ABS GRAY 8.31"L X 3.94"W
Description
General part information
BOS 903

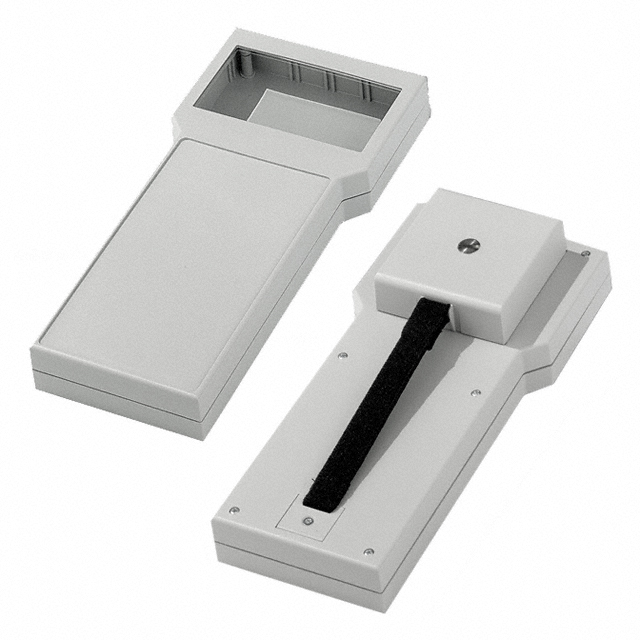

Box Plastic, ABS Gray Hand Held, Split Sides 8.307" L x 3.937" W (211.00mm x 100.00mm) X 1.575" (40.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS 903 |
|---|---|
| Area (L x W) | 32.7 in² |
| Color | Gray |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Features | Battery Compartment, 9V, PCB Supports |
| Height | 1.575 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | IP65 |
| Size / Dimension Length | 8.307 in |
| Size / Dimension Width | 3.937 in |
| Thickness | 0.118 in |
| Weight | 0.379 lb |
