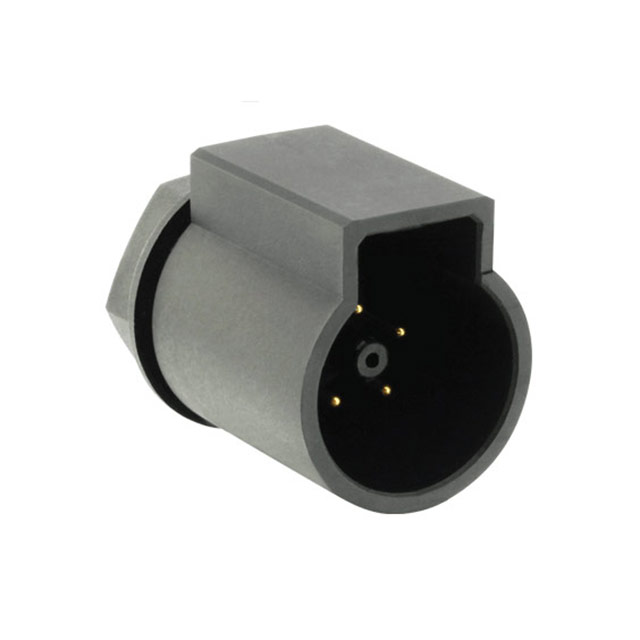

UTL7145P
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG MALE 5POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTL7145P
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG MALE 5POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTL7145P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 5 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Size - Insert | 14-5 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.67 | |
| 10 | $ 9.46 | |||
| 25 | $ 9.09 | |||
| 50 | $ 8.73 | |||
| 100 | $ 8.54 | |||
Description
General part information
UTL7145P
5 (2 + 2 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
