ZB6CD05
ObsoleteSCHNEIDER ELECTRIC
CONFIG SW BODY SELECTOR ILLUM
ZB6CD05
ObsoleteSCHNEIDER ELECTRIC
CONFIG SW BODY SELECTOR ILLUM
Description
General part information
ZB6CD05

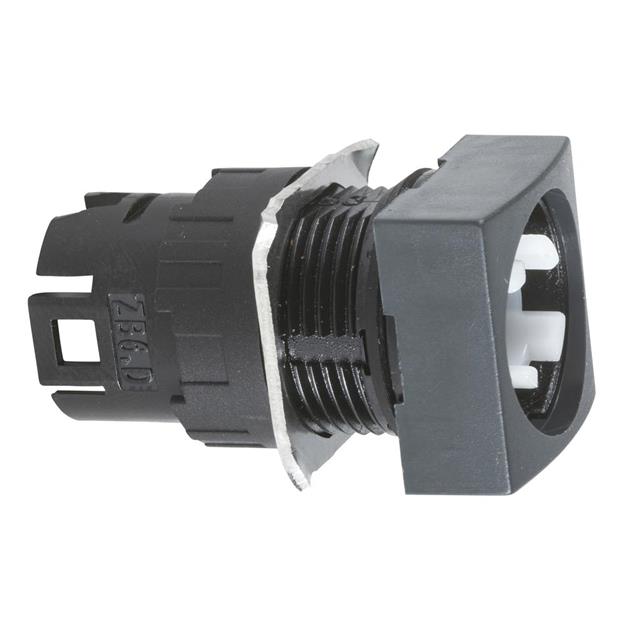

Configurable Switch Body Selector Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB6CD05 |
|---|---|
| Actuator Type | Selector |
| Compatible Series | Schneider, Harmony XB6 |
| Illumination | Illuminated |
| Panel Cutout Dimension | 16 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
