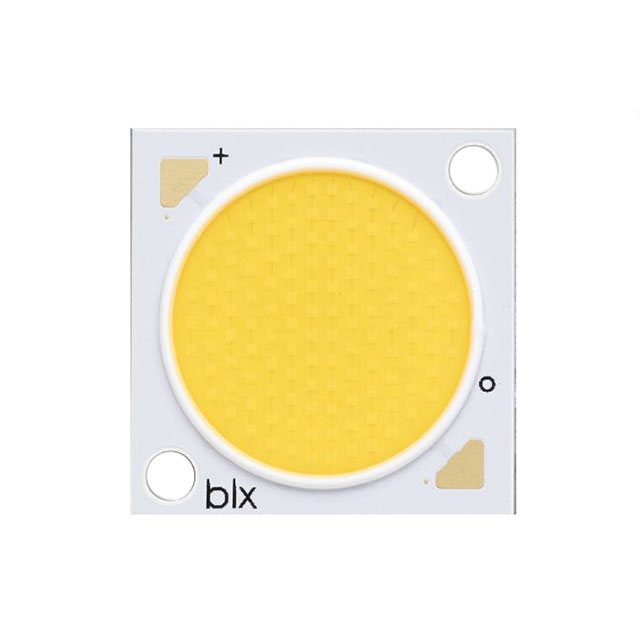

BXRE-57E4001-B-74

Active

BRIDGELUX

LED COB V18 CL WHT SQUARE 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-57E4001-B-74

Active

BRIDGELUX

LED COB V18 CL WHT SQUARE 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-57E4001-B-74	BXRE-57 Series

CCT (K)	5700 K	5700 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 98
Current - Max [Max]	1.8 A	1 - 900 A
Current - Test	900 mA	1.05 - 900 A
Height [z]	1.7 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	19.2 mm	6.3 - 23.3 mm
Lumens/Watt @ Current - Test	155 lm/W	121 - 182 lm/W
Luminous Flux @ Current/Temperature	4746 lm	464 - 11513 lm
Size / Dimension [x]	24 mm	12.5 - 28 mm
Size / Dimension [y]	24 mm	12.5 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	34 V	17.2 - 50.7 V

BXRE-57 Series

V18C THRIVE COOL WHITE LED ARRAY

Part	Lens Type	Color	Configuration	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Type	Height [z]	Lumens/Watt @ Current - Test	CCT (K)	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Temperature - Test	Current - Test
BRIDGELUX BXRE-57S4001-C-74	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	132 lm/W	5700 K	120 °	34.4 V	95	5312 lm
BRIDGELUX BXRE-57C4001-C-73	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	157 lm/W	5700 K	120 °	34 V	70	6227 lm	85 °C
BRIDGELUX BXRE-57E6501-C-83	Flat	Cool, White	Square	28 mm	28 mm	3.5 A	23.3 mm	Chip On Board (COB)	1.65 mm	182 lm/W	5700 K	120 °	50.7 V	80	11076 lm		1.2 A
BRIDGELUX BXRE-57C6501-B-73	Flat	Cool, White	Square	28 mm	28 mm	2.34 A	22.6 mm	Chip On Board (COB)	1.7 mm	158 lm/W	5700 K	120 °	50.7 V	70	9354 lm	85 °C
BRIDGELUX BXRE-57E4001-C-74	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	155 lm/W	5700 K		34 V	80	6170 lm	85 °C
BRIDGELUX BXRE-57E2001-C-74	Flat	Cool, White	Square	19 mm	19 mm	1.26 A	14 mm	Chip On Board (COB)	1.7 mm	156 lm/W	5700 K		33.9 V	80	3322 lm	85 °C	630 mA
BRIDGELUX BXRE-57C1001-C-74	Flat	Cool, White	Square			720 mA	10.2 mm	Chip On Board (COB)	1.7 mm	151 lm/W	5700 K		34 V	70	1853 lm	85 °C	360 mA
BRIDGELUX BXRE-57E4001-B-73	Flat	Cool, White	Square	24 mm	24 mm	1.8 A	19.2 mm	Chip On Board (COB)	1.7 mm	155 lm/W	5700 K	120 °	34 V	80	4746 lm	85 °C	900 mA
BRIDGELUX BXRE-57C4001-C-74	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	157 lm/W	5700 K		34 V	70	6227 lm	85 °C
BRIDGELUX BXRE-57E4001-C-73	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	155 lm/W	5700 K	120 °	34 V	80	6170 lm	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	600	$ 6.88

Description

General part information

BXRE-57 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V18 Array White, Cool Square
