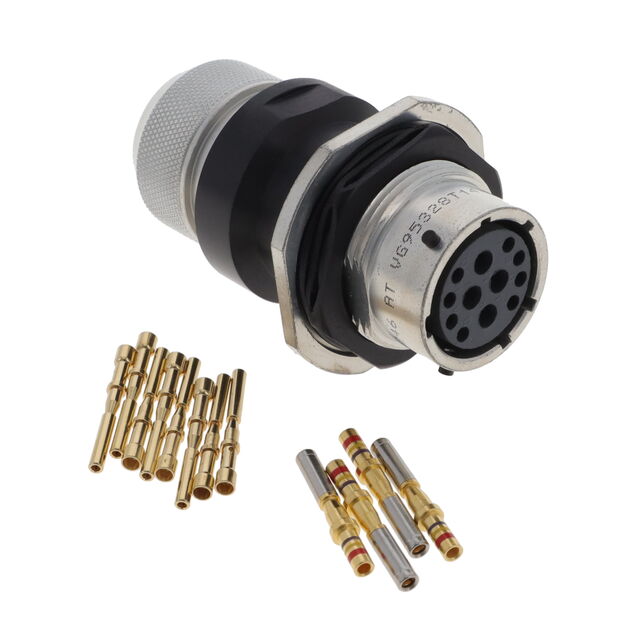

VG95328T14-12SNJ

Active

AMPHENOL PCD

VG95328 12C 8#20 4#16 SKT JAM NU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VG95328T14-12SNJ

Active

AMPHENOL PCD

VG95328 12C 8#20 4#16 SKT JAM NU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VG95328T14-12SNJ

Applications	Military
Color	Black
Connector Type	Receptacle, Female Sockets
Fastening Type	Reverse Bayonet Lock
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Finish	Zinc-Tin
Shell Size - Insert	14-12
Shielding	Shielded
Termination	Crimp

VG953 Series

Part	Voltage Rating	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Material	Fastening Type	Shielding	Features	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Material	Number of Positions	Termination	Connector Type	Insert Material	Primary Material	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Shell Finish	Accessory Type	Material	Qualification	Shell Size - Insert	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Shell Size - Insert
AMPHENOL PCD VG95328T1419PW	600 VAC 850 V	Military	-55 °C	125 °C	W	Copper Alloy	Reverse Bayonet Lock	Shielded	Backshell	19	14	Aluminum Alloy	19	Crimp	Male Pins Receptacle	Neoprene	Metal	Gold	Bulkhead - Front Side Nut	7.5 A	15.2 mm	0.598 in	Cadmium
AMPHENOL PCD VG95328T07C14J									Flange															Dummy Receptacle	Aluminum Alloy	MIL-DTL-26482 Series I	14	Circular Connectors
AMPHENOL PCD VG95328T07C12J									Flange															Dummy Receptacle	Aluminum Alloy	MIL-DTL-26482 Series I	12	Circular Connectors
AMPHENOL PCD VG95328T1419SX	600 VAC 850 V	Military	-55 °C	125 °C	X	Copper Alloy	Reverse Bayonet Lock	Shielded	Backshell	19	14	Aluminum Alloy	19	Crimp	Receptacle Female Sockets	Neoprene	Metal	Gold	Bulkhead - Front Side Nut	7.5 A	15.2 mm	0.598 in	Cadmium
AMPHENOL PCD VG95328T1210SX	600 VAC 850 V	Military	-55 °C	125 °C	X	Copper Alloy	Reverse Bayonet Lock	Shielded	Backshell			Aluminum Alloy	10	Crimp	Receptacle Female Sockets	Neoprene	Metal	Gold	Bulkhead - Front Side Nut	7.5 A			Cadmium
AMPHENOL PCD VG95328T2255PN	600 VAC 850 V	Military	-55 °C	125 °C	N	Copper Alloy	Reverse Bayonet Lock	Shielded	Backshell			Aluminum Alloy	55 positions	Crimp	Male Pins Receptacle	Neoprene	Metal	Gold	Bulkhead - Front Side Nut	7.5 A			Cadmium						1.024 in	26 mm	55	22
AMPHENOL PCD VG95328T1419SW	600 VAC 850 V	Military	-55 °C	125 °C	W	Copper Alloy	Reverse Bayonet Lock	Shielded	Backshell	19	14	Aluminum Alloy	19	Crimp	Receptacle Female Sockets	Neoprene	Metal	Gold	Bulkhead - Front Side Nut	7.5 A	15.2 mm	0.598 in	Cadmium
AMPHENOL PCD VG95328T18-32PNJ		Military	-55 °C	125 °C	N		Reverse Bayonet Lock	Shielded						Crimp	Male Pins Plug								Zinc-Tin								32	18	Black
AMPHENOL PCD VG95328T14-12SXJ		Military	-55 °C	125 °C	X		Reverse Bayonet Lock	Shielded					12	Crimp	Receptacle Female Sockets								Zinc-Tin										Black	14-12
AMPHENOL PCD VG95328T145PNJ	900 VAC 1250 VDC	Military	-55 °C	125 °C	N	Copper Alloy	Reverse Bayonet Lock	Shielded	Backshell			Aluminum Alloy		Crimp	Male Pins Receptacle	Neoprene	Metal	Gold	Bulkhead - Front Side Nut	13 A	15.2 mm	0.598 in	Zinc-Tin										Black	14-5
