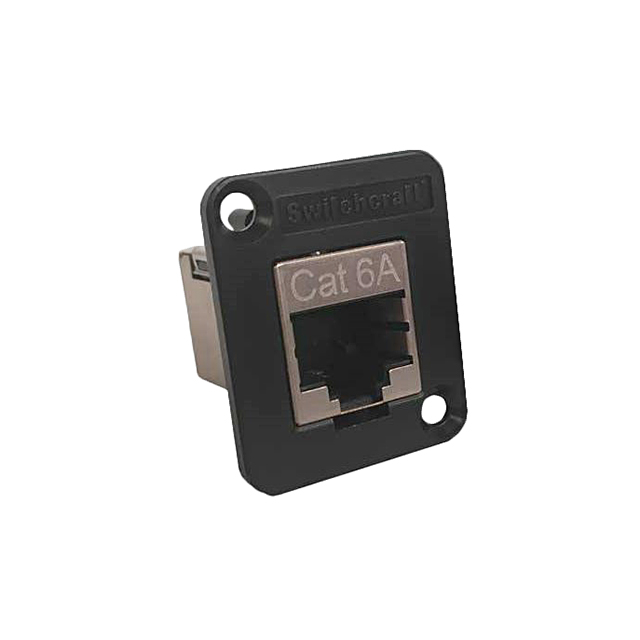

EHRJ45P6AS

Active

Switchcraft Inc.

EH SERIES PANEL CONNECTOR, RJ45

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EHRJ45P6AS

Active

Switchcraft Inc.

EH SERIES PANEL CONNECTOR, RJ45

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EHRJ45P6AS	EHRJ45 Series

Connector Type	-	Jack
Contact Finish	-	Gold
Contact Material	-	Copper Alloy
Convert From (Adapter End)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack	8p8c (RJ45), Jack
Housing Material	Thermoplastic	Thermoplastic
LED Color	-	Does Not Contain LED
Mounting Type	Panel Mount, Square Flange	Panel Mount, Square Flange, Panel Mount, Flange
Number of Ports	-	1
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Rows	-	1
Orientation	-	90 °
Ratings	Cat6a	Cat6, Cat5e, Cat6a
Shell Material, Finish	-	Thermoplastic
Shield Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Unshielded, Shielded
Tab Direction	-	User Selectable
Termination	-	IDC, Color Coded Block
Type	Coupler	Coupler

EHRJ45 Series

CONN RJ-45 F 8 POS IDT RA PANEL MOUNT 8 TERMINAL 1 PORT CAT 6

Part	Contact Material	Tab Direction	Ratings	LED Color	Housing Material	Shielding	Number of Ports	Contact Finish	Number of Rows	Connector Type	Orientation	Termination	Number of Positions/Contacts	Type	Convert From (Adapter End)	Convert To (Adapter End)	Mounting Type	Shield Material	Shell Material, Finish
Switchcraft Inc. EHRJ45P6IDC	Copper Alloy	User Selectable	Cat6	Does Not Contain LED	Thermoplastic	Unshielded	1	Gold	1	Jack	90 °	Color Coded Block, IDC	8p8c (RJ45, Ethernet)
Switchcraft Inc. EHRJ45P6			Cat6		Thermoplastic	Unshielded								Coupler	Jack, 8p8c (RJ45)	8p8c (RJ45), Jack	Panel Mount, Square Flange	Copper Alloy	Thermoplastic
Switchcraft Inc. EHRJ45P5ESIDC	Copper Alloy	User Selectable	Cat5e	Does Not Contain LED	Thermoplastic	Shielded	1	Gold	1	Jack	90 °	Color Coded Block, IDC	8p8c (RJ45, Ethernet)
Switchcraft Inc. EHRJ45P5EIDC	Copper Alloy	User Selectable	Cat5e	Does Not Contain LED	Thermoplastic	Unshielded	1	Gold	1	Jack	90 °	Color Coded Block, IDC	8p8c (RJ45, Ethernet)
Switchcraft Inc. EHRJ45P5ES			Cat5e		Thermoplastic	Shielded								Coupler	Jack, 8p8c (RJ45)	8p8c (RJ45), Jack	Panel Mount, Square Flange	Copper Alloy	Thermoplastic
Switchcraft Inc. EHRJ45P6SIDC	Copper Alloy	User Selectable	Cat6	Does Not Contain LED	Thermoplastic	Shielded	1	Gold	1	Jack	90 °	Color Coded Block, IDC	8p8c (RJ45, Ethernet)
Switchcraft Inc. EHRJ45P6S			Cat6		Thermoplastic	Shielded								Coupler	Jack, 8p8c (RJ45)	8p8c (RJ45), Jack	Flange, Panel Mount	Copper Alloy	Thermoplastic
Switchcraft Inc. EHRJ45P6AS			Cat6a		Thermoplastic	Shielded								Coupler	Jack, 8p8c (RJ45)	8p8c (RJ45), Jack	Panel Mount, Square Flange	Copper Alloy
Switchcraft Inc. EHRJ45P5E			Cat5e		Thermoplastic	Unshielded								Coupler	Jack, 8p8c (RJ45)	8p8c (RJ45), Jack	Flange, Panel Mount	Copper Alloy	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.50
		10	$ 21.21
		25	$ 19.22
		50	$ 17.87
		100	$ 16.64
		250	$ 15.20
		500	$ 14.23

Description

General part information

EHRJ45 Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6a Shielded
