B4MBAUH

Active

Switchcraft Inc.

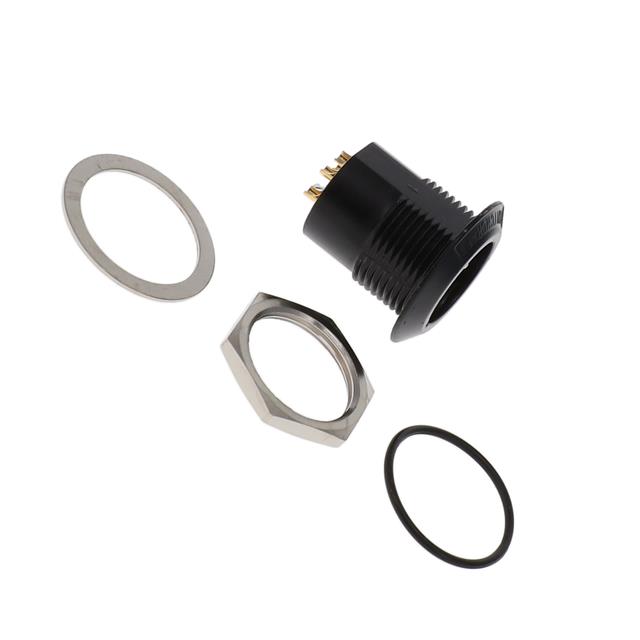

CONN RCPT MALE XLR 4P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 4P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT MALE XLR 4P SOLDER CUP

Part	Number of Positions	Shell Material	Insert Material	Contact Material	Connector Type	Features	Mounting Feature	Applications	Ingress Protection	Fastening Type	Shell Finish	Shell Size - Insert	Color	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish - Mating	Primary Material
Switchcraft Inc. B4MAUH	4	Zinc	Polyester	Brass	Male Pins, Receptacle	Ground	Bulkhead - Rear Side Nut	Audio, Instrumentation	IP66	Latch Lock	Nickel	XLR	Silver	65 °C	-40 °C	Keyed	Gold	Metal
Switchcraft Inc. B4MH	4	Zinc	Polyester	Brass	Male Pins, Receptacle	Ground	Bulkhead - Rear Side Nut	Audio, Instrumentation	IP66	Latch Lock	Nickel	XLR	Silver	65 °C	-40 °C	Keyed	Silver	Metal
Switchcraft Inc. B4MBAUH	4	Zinc	Polyester	Brass	Male Pins, Receptacle	Ground	Bulkhead - Rear Side Nut	Audio, Instrumentation	IP66	Latch Lock	Black	XLR	Black	65 °C	-40 °C	Keyed	Gold	Metal
Switchcraft Inc. B4MBH	4	Zinc	Polyester	Brass	Male Pins, Receptacle	Ground	Bulkhead - Rear Side Nut	Audio, Instrumentation	IP66	Latch Lock	Black	XLR	Black	65 °C	-40 °C	Keyed	Silver	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
