UHV-222A
ActiveTDK Corporation
CAP CER 400PF 20KV Z5T DISK
UHV-222A
ActiveTDK Corporation
CAP CER 400PF 20KV Z5T DISK
Description
General part information
UHV-222A

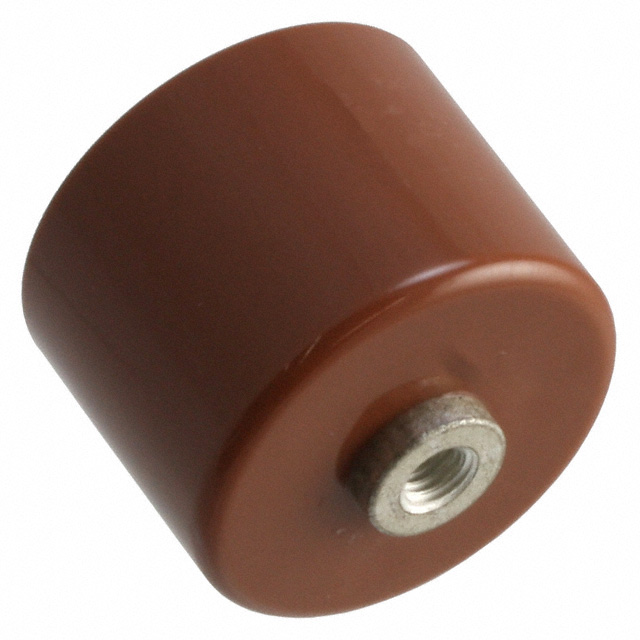

400 pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | UHV-222A |
|---|---|
| Applications | General Purpose |
| Capacitance | 400 pF |
| Features | Low Dissipation Factor, High Voltage |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension Diameter | 0.984 in |
| Size / Dimension Length | 0.906 in |
| Temperature Coefficient | Z5T |
| Tolerance | 10 % |
| Voltage - Rated | 20 kV |
