Description
General part information
212970

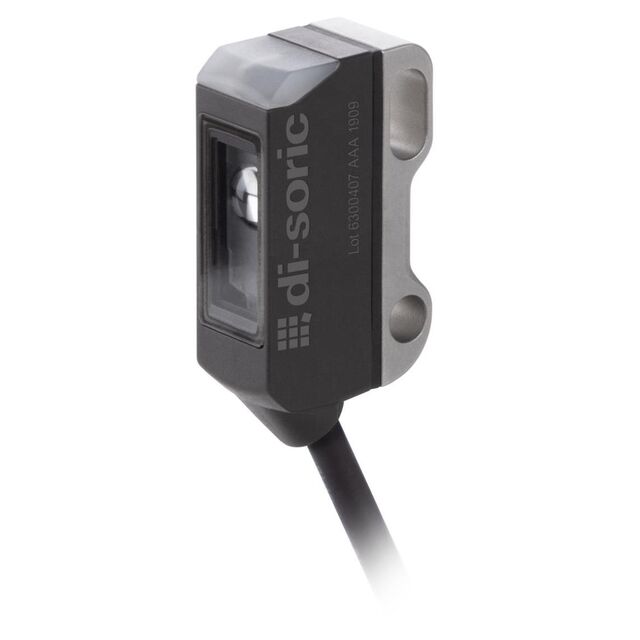

Diffuse Optical Sensor 0.118" ~ 0.591" (3mm ~ 15mm) NPN-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | 212970 |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP65, IP67 |
| Light Source | Red Laser Diode |
| Light Source Wavelength (Red Laser Diode) | 633 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN-NO |
| Sensing Distance Maximum | 0.591 " |
| Sensing Distance Minimum | 0.118 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
