FMAD1054

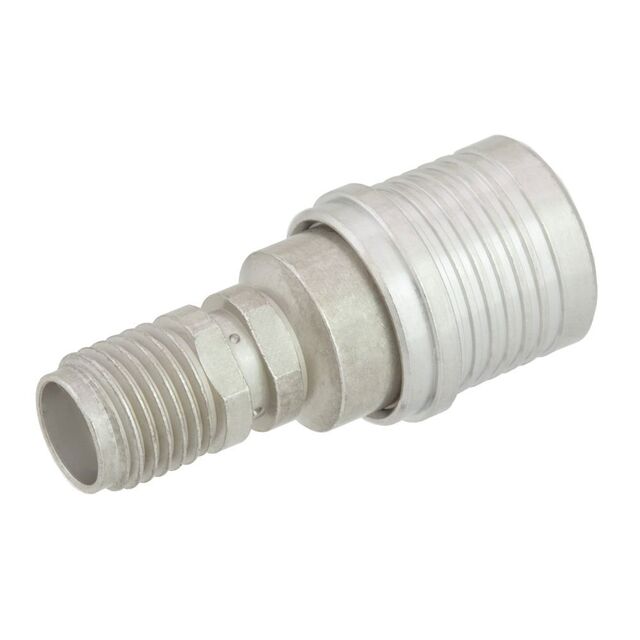

Adapter Coaxial Connector QMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1054 |
|---|---|
| Adapter Series | SMA to QMA |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper, Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, QMA Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.17 dB |
| Mating Cycles | 100 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
