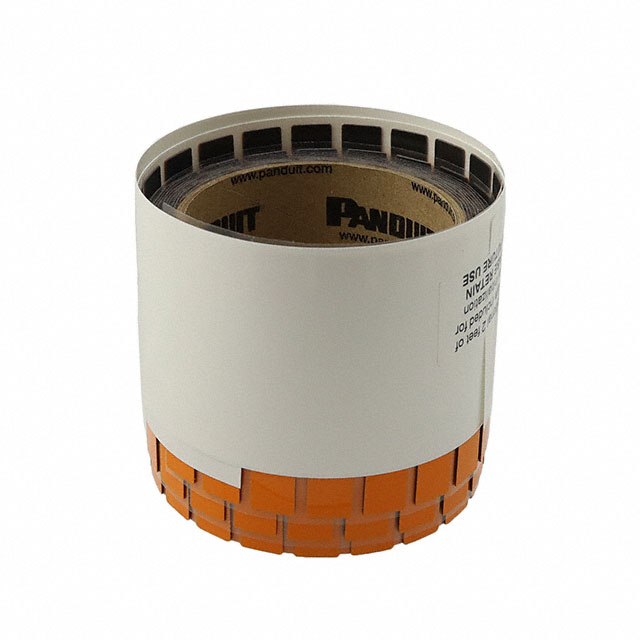

C100X050AUT

Active

Panduit Corp

LABEL COMPONENT

Search across all available documentation for this part.

Active

Panduit Corp

LABEL COMPONENT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C100X050AUT	C100X050 Series

Color - Background	Orange	Yellow, Orange, White, Silver, Green
For Use With/Related Products	-	User Defined
Label Size	-	25.4 mm
Label Size	-	1 in
Label Size	-	12.7 mm
Label Size	-	0.5 "
Label Type	Die Cut	Die Cut
Length [x]	1 in	1 in
Length [x]	25.4 mm	25.4 mm
Material	-	Polyester
Material - Body	Polyester (PET)	Polyester (PET), Vinyl, Polyester
Shelf Life	-	48 Months
Shelf Life Start	-	Date of Manufacture
Width [x]	0.5 in	0.5 in
Width [x]	0.5 in	0.5 in
Width [x]	12.7 mm	12.7 mm

RAISED PANEL LABEL, COMPONENT, 1.0"W X 0

Part	Shelf Life	Width [x]	Width [x]	Width [x]	Shelf Life Start	Label Type	Material - Body	Length [x]	Length [x]	Color - Background	For Use With/Related Products	Label Size [x]	Label Size [x]	Label Size [y]	Label Size [y]	Material
Panduit Corp C100X050A8T	48 Months	0.5 in	0.5 in	12.7 mm	Date of Manufacture	Die Cut	Polyester (PET)	1 in	25.4 mm	Yellow
Panduit Corp C100X050AUT		0.5 in	0.5 in	12.7 mm		Die Cut	Polyester (PET)	1 in	25.4 mm	Orange
Panduit Corp C100X050CBT	48 Months				Date of Manufacture	Die Cut	Vinyl	1 in	25.4 mm	White
Panduit Corp C100X050YMC						Die Cut	Polyester	1 in	25.4 mm	Silver	User Defined	25.4 mm	1 in	12.7 mm	0.5 "	Polyester
Panduit Corp C100X050YPT						Die Cut	Polyester (PET)	1 in	25.4 mm	White
Panduit Corp C100X050YMT	48 Months				Date of Manufacture	Die Cut	Polyester (PET)	1 in	25.4 mm	Silver
Panduit Corp C100X050AST		0.5 in	0.5 in	12.7 mm		Die Cut	Polyester (PET)	1 in	25.4 mm	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LABEL COMPONENT

Technical documentation and resources
