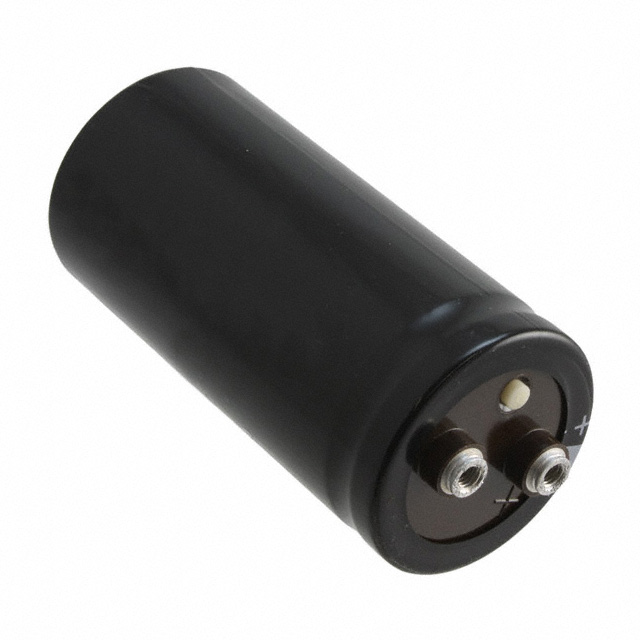

Specification	B41560A9109M000

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	14 mOhm
Height - Seated (Max)	4.161 in
Impedance	12 mOhm
Lead Spacing	0.874 in
Lifetime	3000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	11 A
Size / Dimension Diameter	2.032 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC
