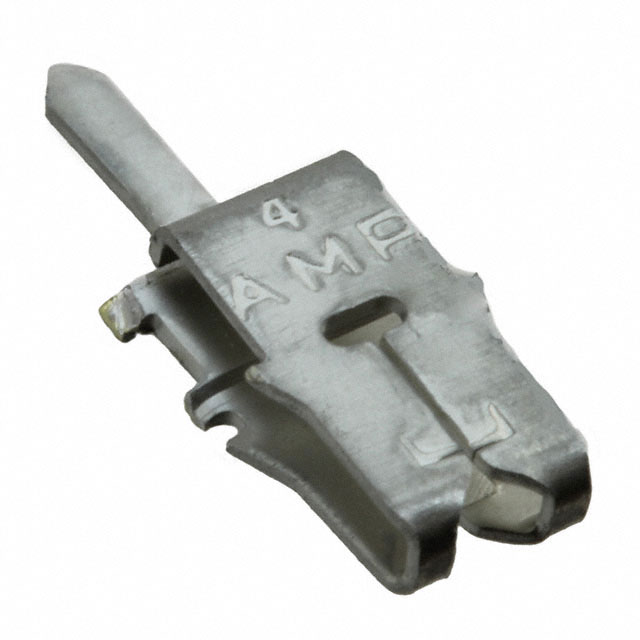

1217302-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 31-33AWG PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217302-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 31-33AWG PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217302-1 |
|---|---|
| Size | 6 |
| Style | 300 |
| Terminal Type | Box IDC |
| Termination | PCB Post |
| Wire Gauge [Max] | 33 AWG |
| Wire Gauge [Min] | 31 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 66000 | $ 0.09 | ||
1217302 Series
CONN MAG TERM 31-33AWG PCB
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Termination | Style | Size |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217302-1 | 31 AWG | 33 AWG | Box IDC | PCB Post | 300 | 6 |
Description
General part information
1217302 Series
Terminal Magnetic Connector 300 31-33 AWG PCB Post
Documents
Technical documentation and resources
